For Sale - OGMA AP26CC OSC Camera

Please Log In to view the details for this classified ad.

Don't have an Astromart account? Click here to create one

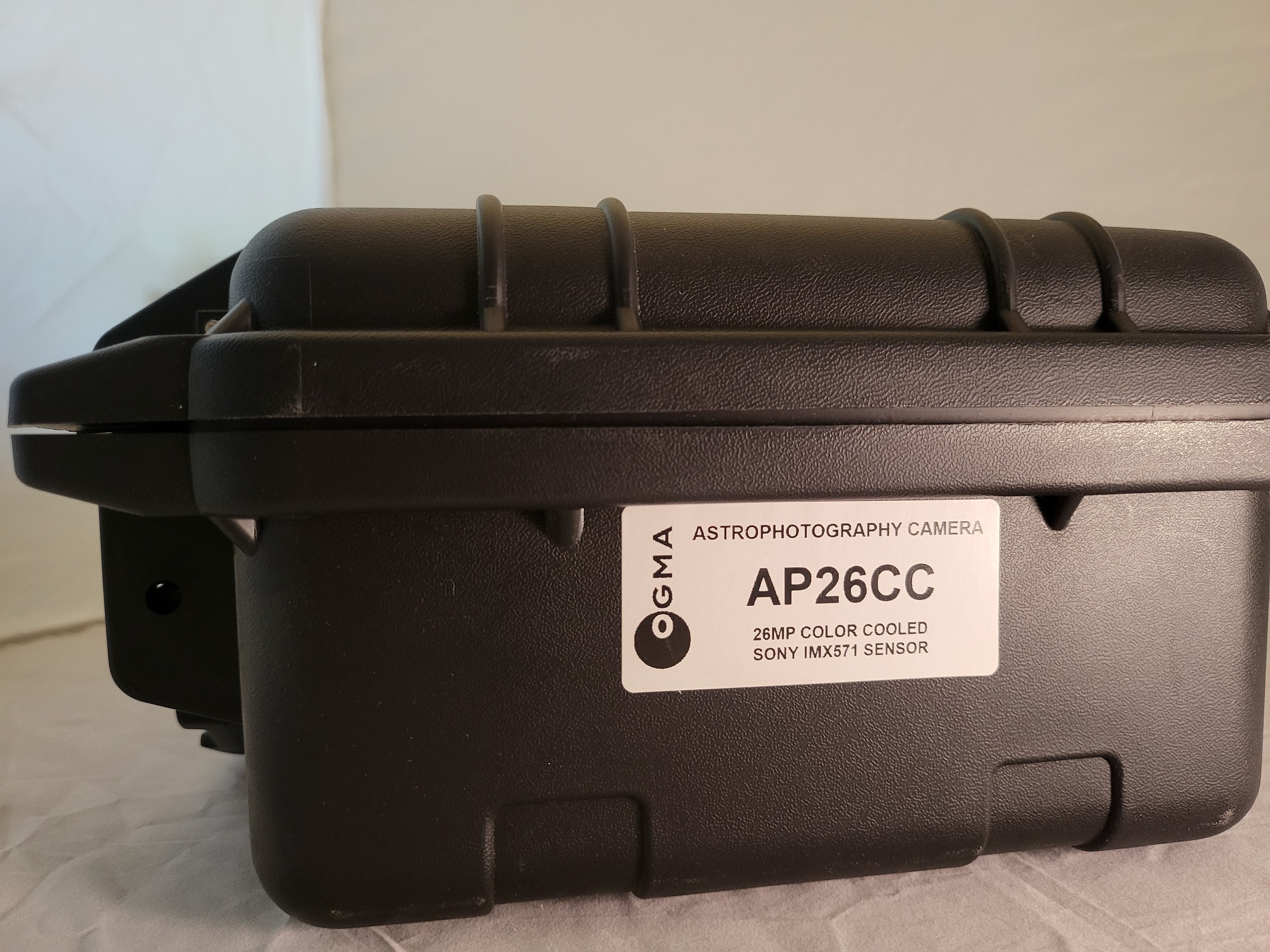

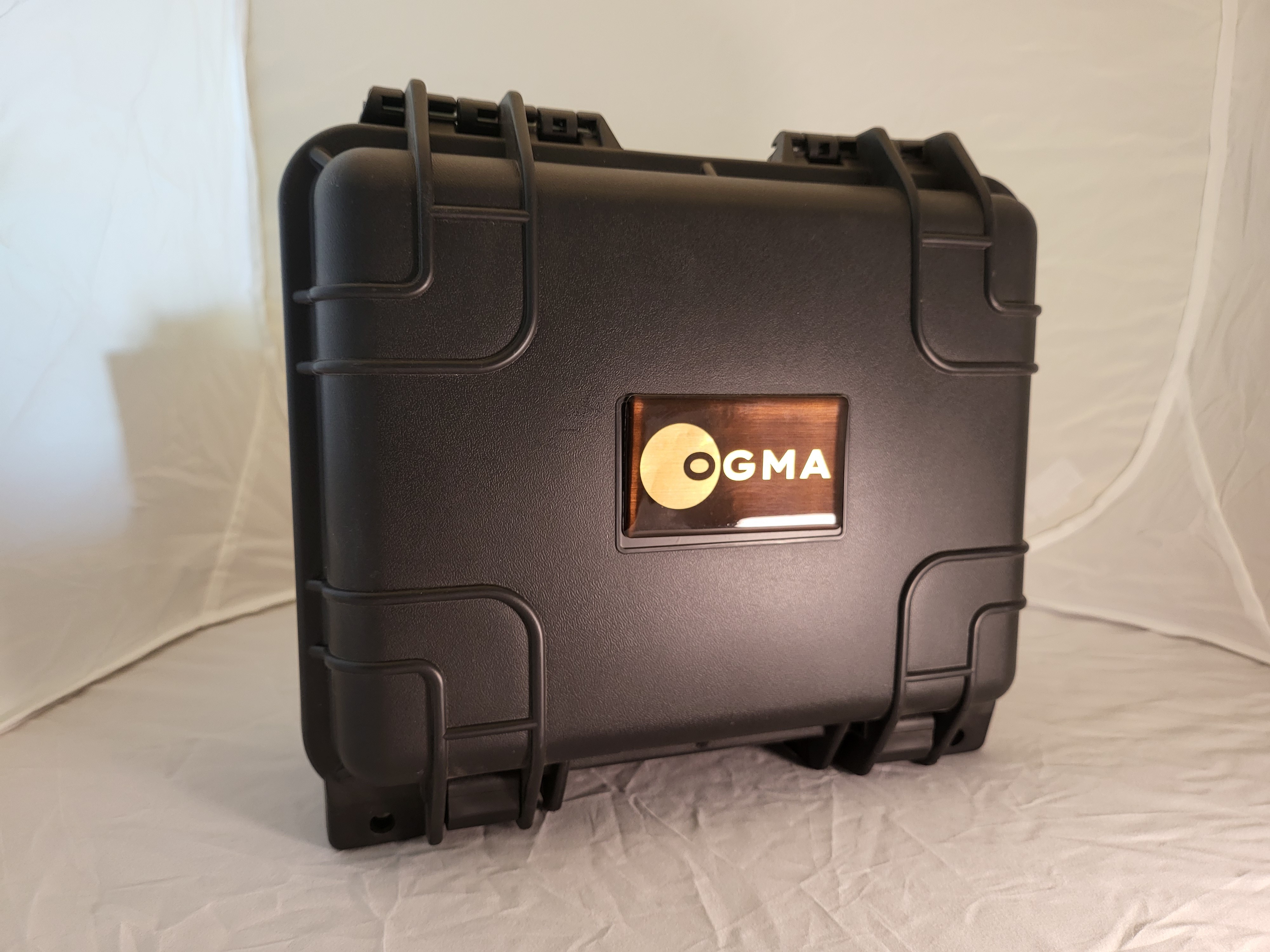

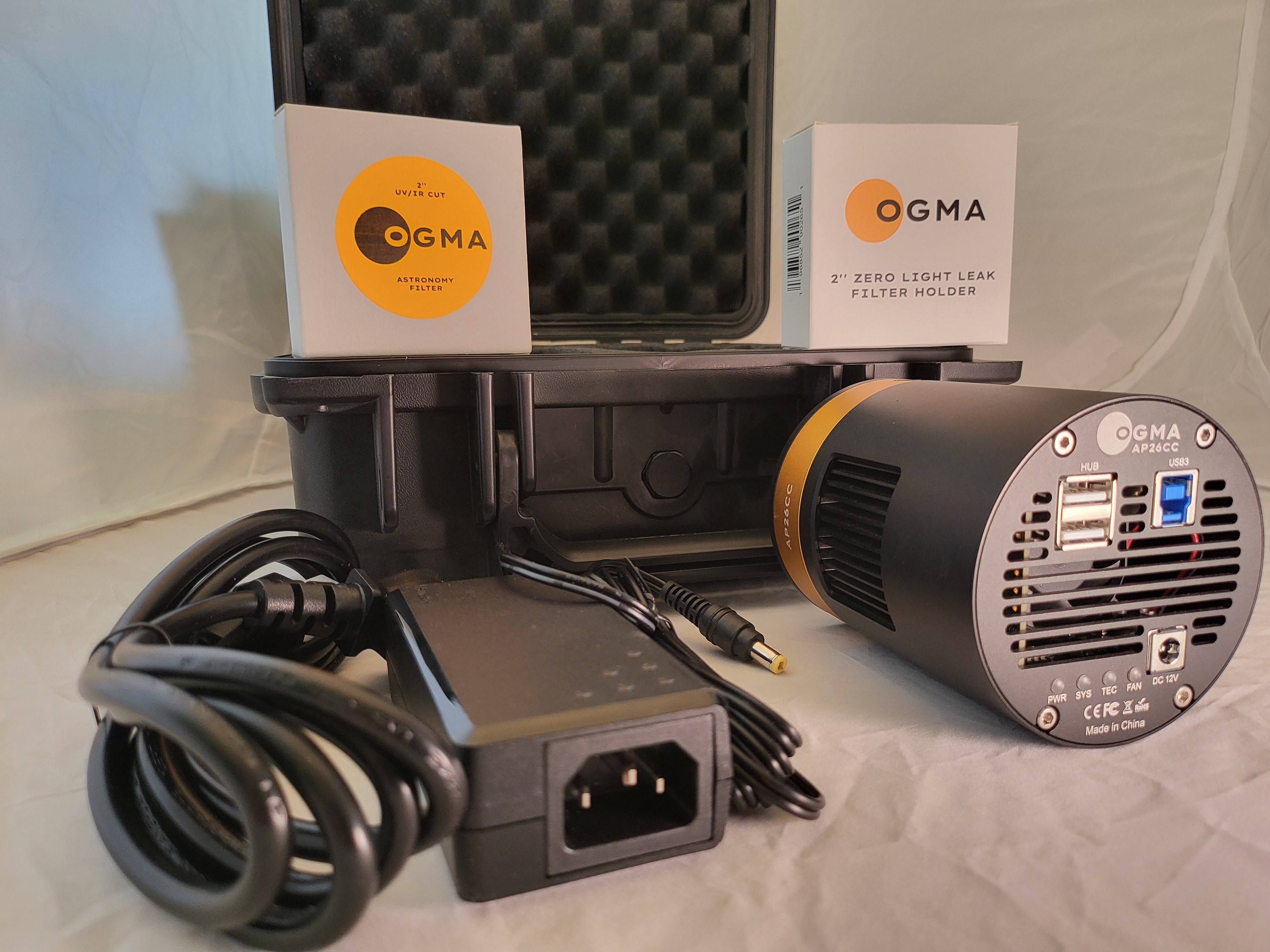

For sale is an OGMA AP26CC one shot color camera (Specs below). I have used this camera only around three times, and it has been stored in it's case when not used. I am selling as I am not really using it as I prefer narrowband imaging and using mono cameras for LRGB. Included is the black pelican style case which holds the camera, the camera itself, a filter holder, and a 2" IR Cut filter. Also included is an adapter plate (from the O'Tilter which I can no longer find) which replaces the attachement plate on the camera allowing it to screw into a filter wheel if you so desire).

I will pick up shipping to the lower 48 states. If you want it shipped elsewhere, you will need to pay for shipping. I only use Paypal, and if you use regular PayPal instead of the Friends and Family option, please add an additional $36 to the $1200 to make up the fee that will be charged to me.  New, the camera sells for $1499 at both OGMA and Agena Astro, but there are none in stock at either sellers. Below are the specs per OGMA:

OGMA AP26CC is one of the few full-spectrum color astrophotography cameras that can deliver over 100Ke full-well with a Sony IMX571 color sensor. Highlights:
Sensor: Sony IMX571 Color CMOS Sensor
Resolution: 6224 x 4168
Mega Pixels: 26MP
Pixel Size: 3.76 μm (square pixels)
Format: APS-C
Amp-Glow: Zero Amp-Glow

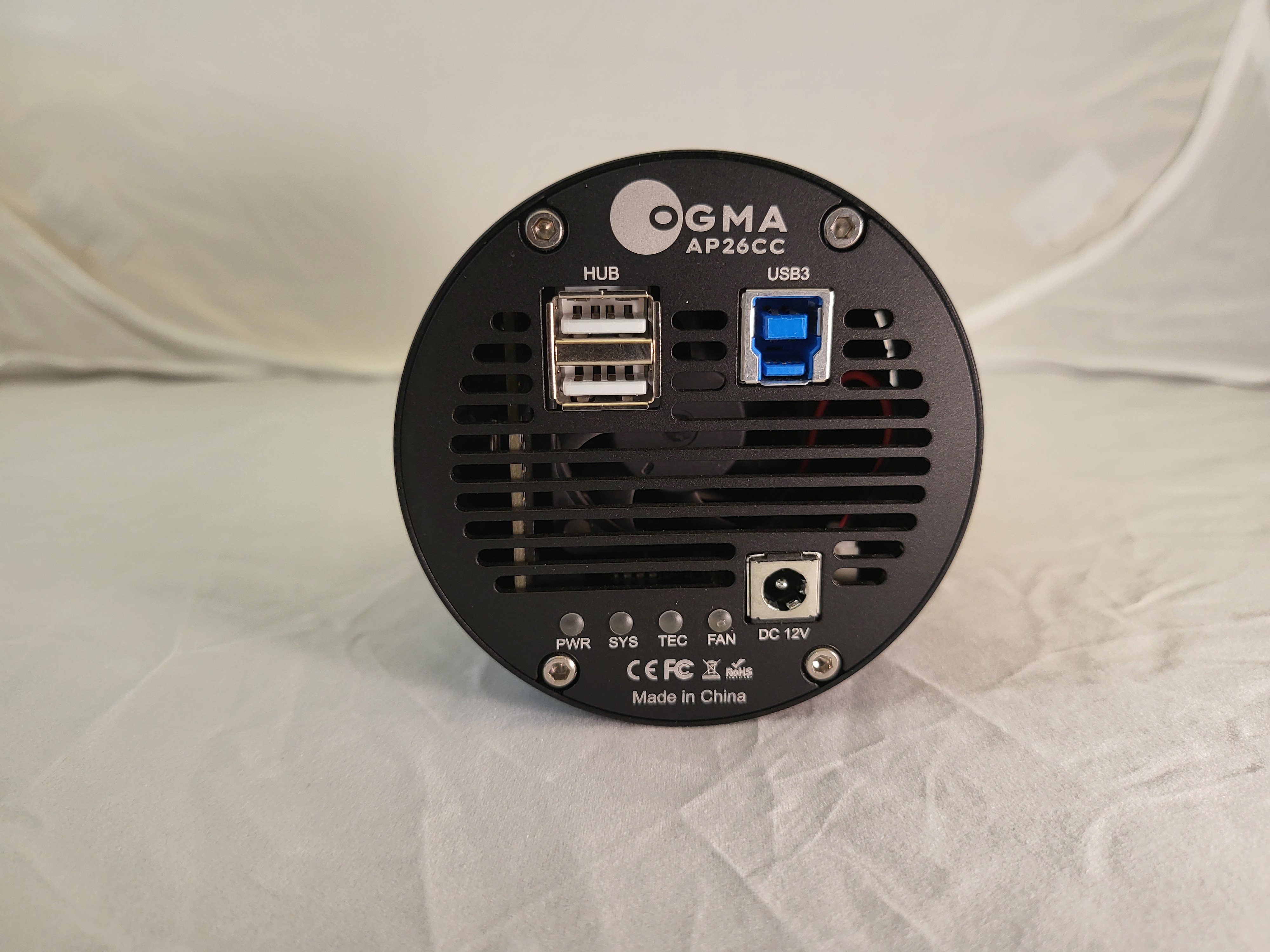

Data Interface: USB3.0/USB2.0
USB Hub: 2 ports to share the USB connection
DDR3 Buffer: 512MB (4Gbit) sufficient for reliable data transfer over USB3.0 (1Byte = 8bit)
Full-well: 100Ke-
Cooling: 40°C below ambient
Like all cooled OGMA cameras, this camera has an anti-dew heater around the sensor protective window. Bundled with a bonus accessory kit:
2" Filter holder ($39 value)
2" UV/IR filter ($39 value)
Back focus shortener
Spacers and adapters
Reconfigurable for multiple scenarios:
A default 17.5 mm of back focus for most situations
A shorter 12.5 mm back focus for when you need more room for accessories
Specifications
Camera Type: Digital still image
Sensor: Sony IMX571 back illuminated sensor (Color)
Diagonal: 28.3 mm
Image Resolution: 26 mega pixels (6224x4168)
Pixel Size: 3.76µm x 3.76µm
Image Area: 23.4mm x 15.7mm
Max FPS at Resolution:
16bit:
6.8 FPS @ 6224x4168
28 FPS @ 3104x2084
63 FPS @ 2064x1386
8bit
13.2 FPS @ 6224x4168
37.1 FPS @ 3104x2084
110 FPS @ 2064x1386
Max FPS at Resolution (Low Noise):
16bit
3.4 FPS @ 6224x4168 (Low Noise Mode is only available in All Pixel Readout Mode)
8bit:
12.7 FPS @ 6224x4168 (Low Noise Mode is only available in All Pixel Readout Mode)
Shutter Type: Rolling shutter
Exposure Time: 0.1ms – 3600s
Gain: 1x – 100x
SNR: 47.1 dB
Dynamic Range: 86.8 dB (Low Noise Mode)
Read Noise (LCG): 1.48 – 3.23 e-
Read Noise (HCG): 1.32 – 0.82 e-
QE Peak: >80%
Full Well: 100ke-
ADC: 16bit
DDR3 Buffer: 512MB (4Gbit) sufficient for reliable data transfer over USB3.0 (1Byte = 8bit)
Data Connection Port: USB3.0/USB2.0
Data Hub: 2 USB ports

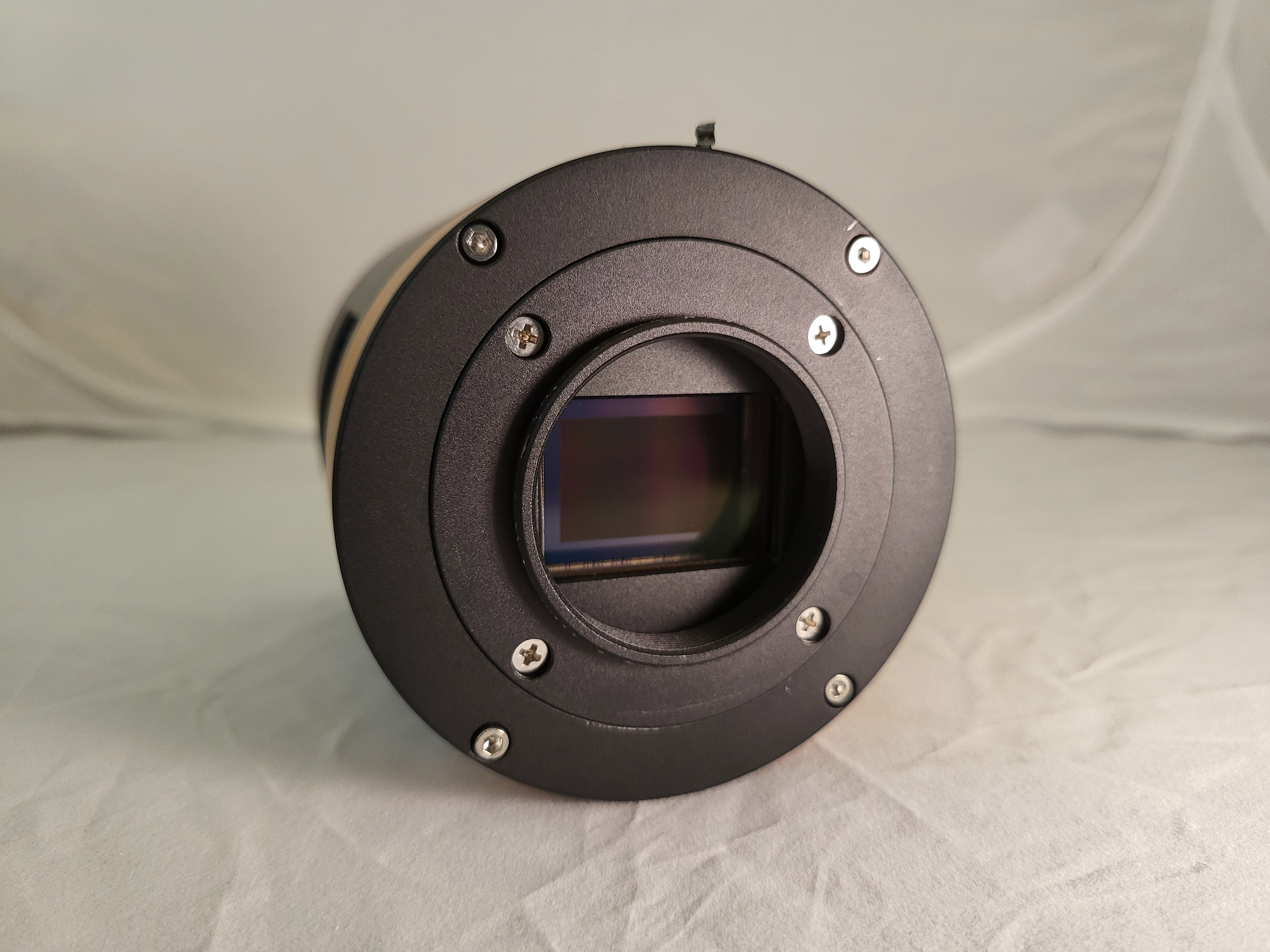

Optical Path Connection: M42 x 0.75mm

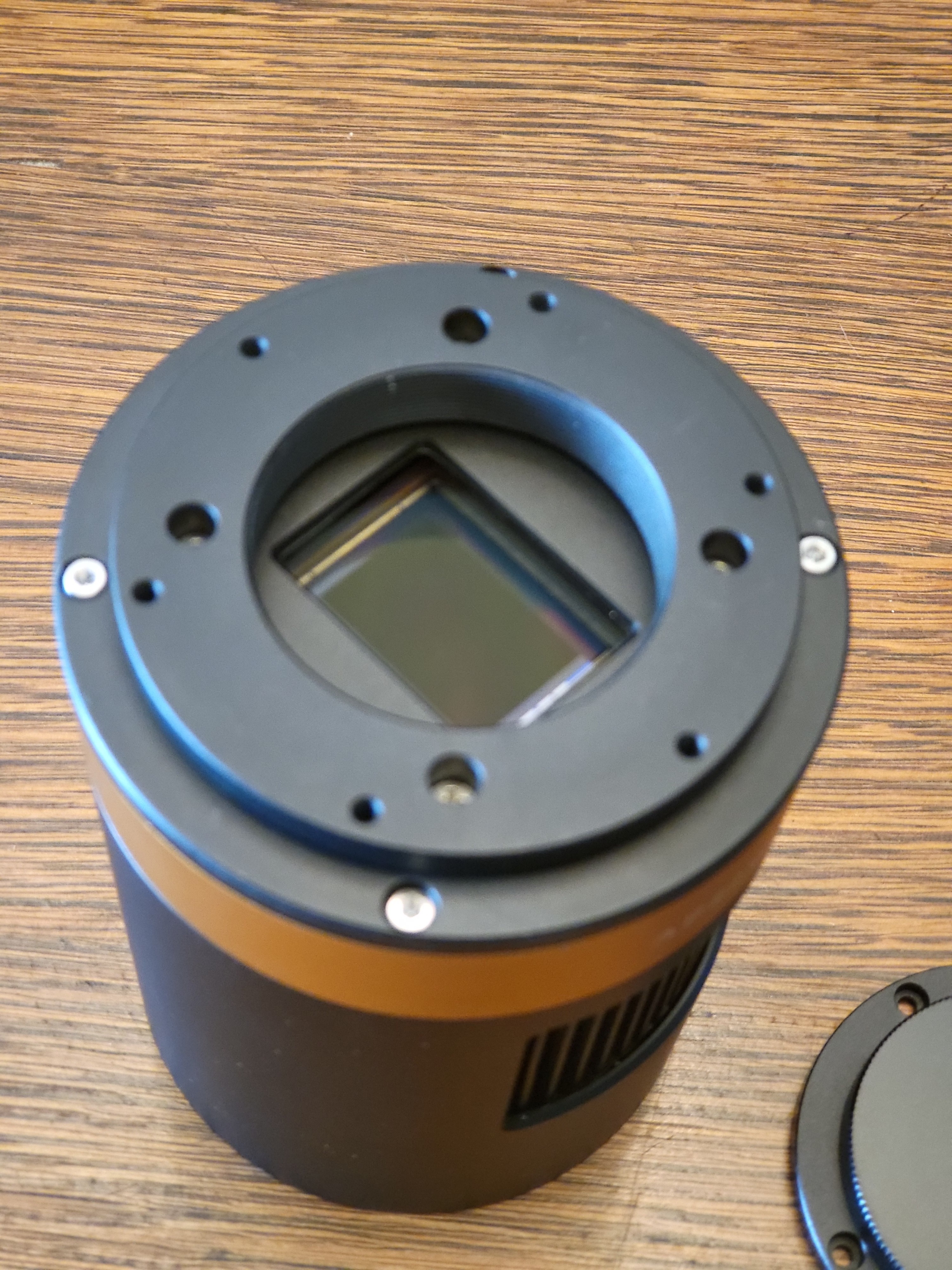

Also, six M2.5 holes matching popular models of filter wheels and OAGs (requires M2.5 screws)
Protective Window: Double-side coating protective Anti-Reflections (AR) glass
Spectral Range: 350-1050nm
Recording System: Still picture and movie
Camera Dimensions: Diameter 80mm x height 103mm
Camera Weight: 0.552kg
Back Focus Distance: 17.5mm
Cooling: Two stage TEC
Effective Cooling Temperature: -35℃ below ambient under short exposure/ -40℃ under long exposure(> 1s)
Operating Temperature: -5℃ to 50℃
Storage Temperature: -10℃ to 60℃
Operating Relative Humidity:: 0 to 80%
Operating Voltage: 12V DC power adapter supplied
Acceptable range for batteries: 11-14V DC
5.5mm plug diameter
Center positive plug
