TSFLAT3 1.0X 3" Flattener for big sensors
Please Log In to view the details for this classified ad.
Don't have an Astromart account? Click here to create one

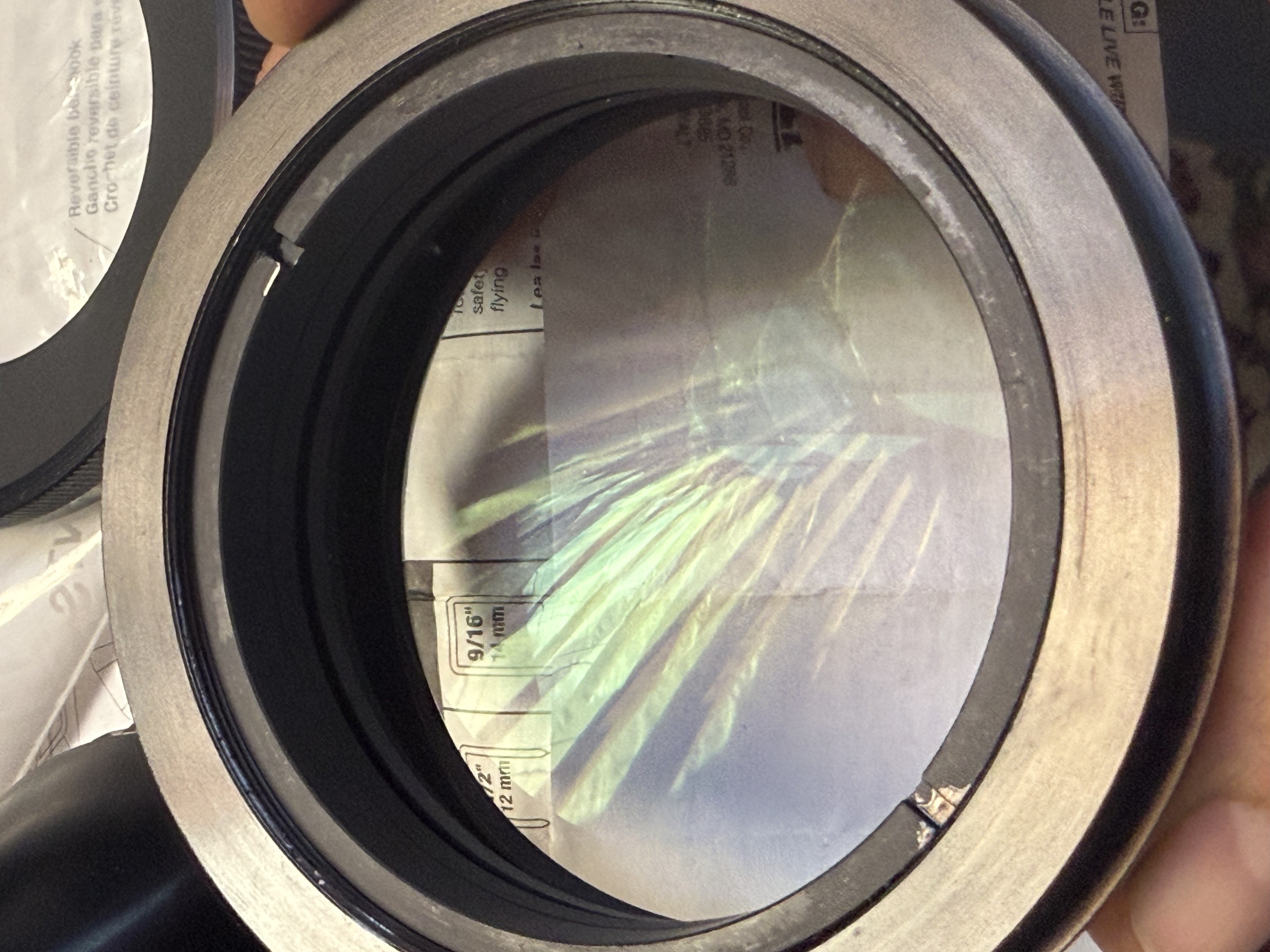

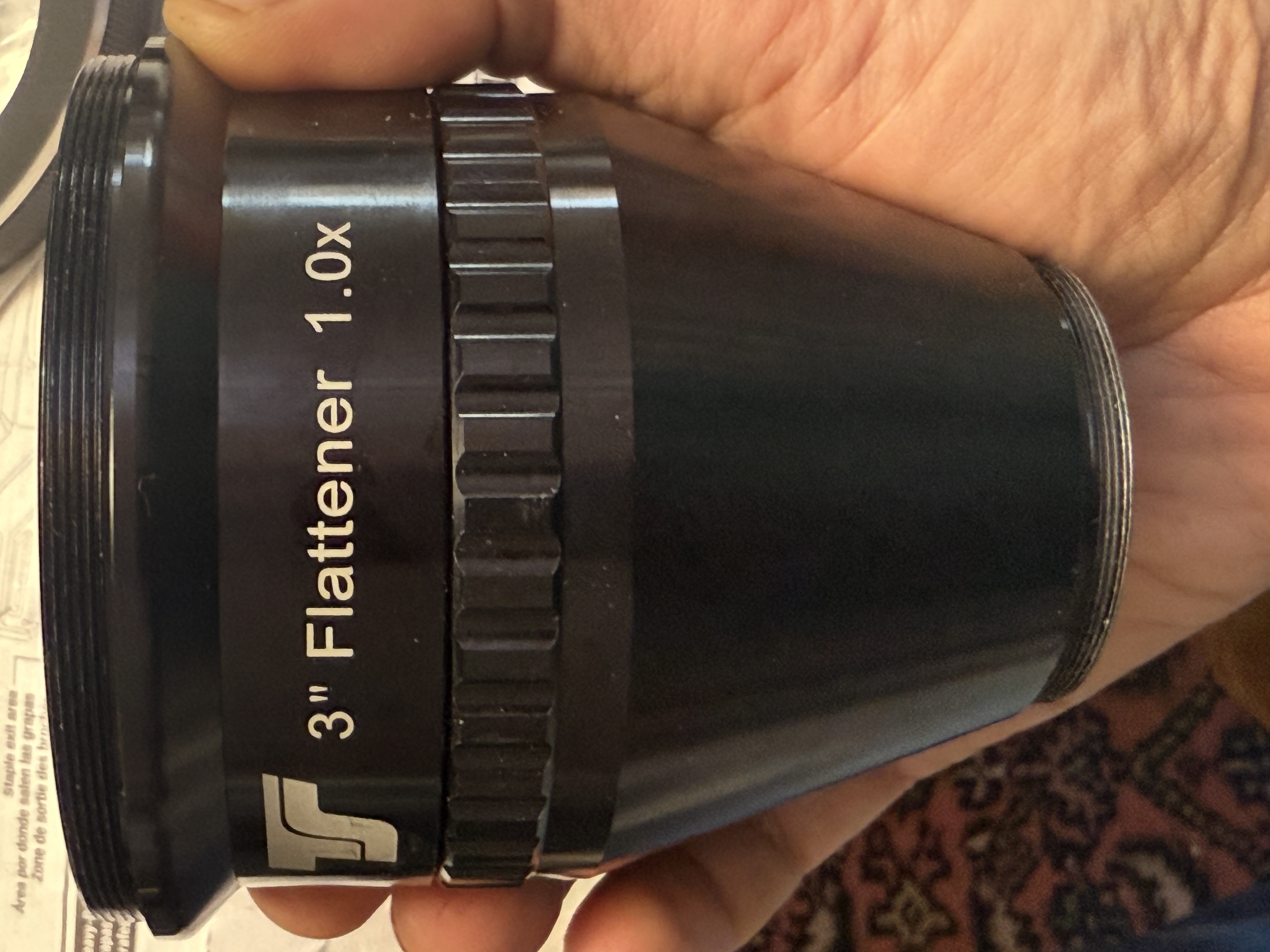

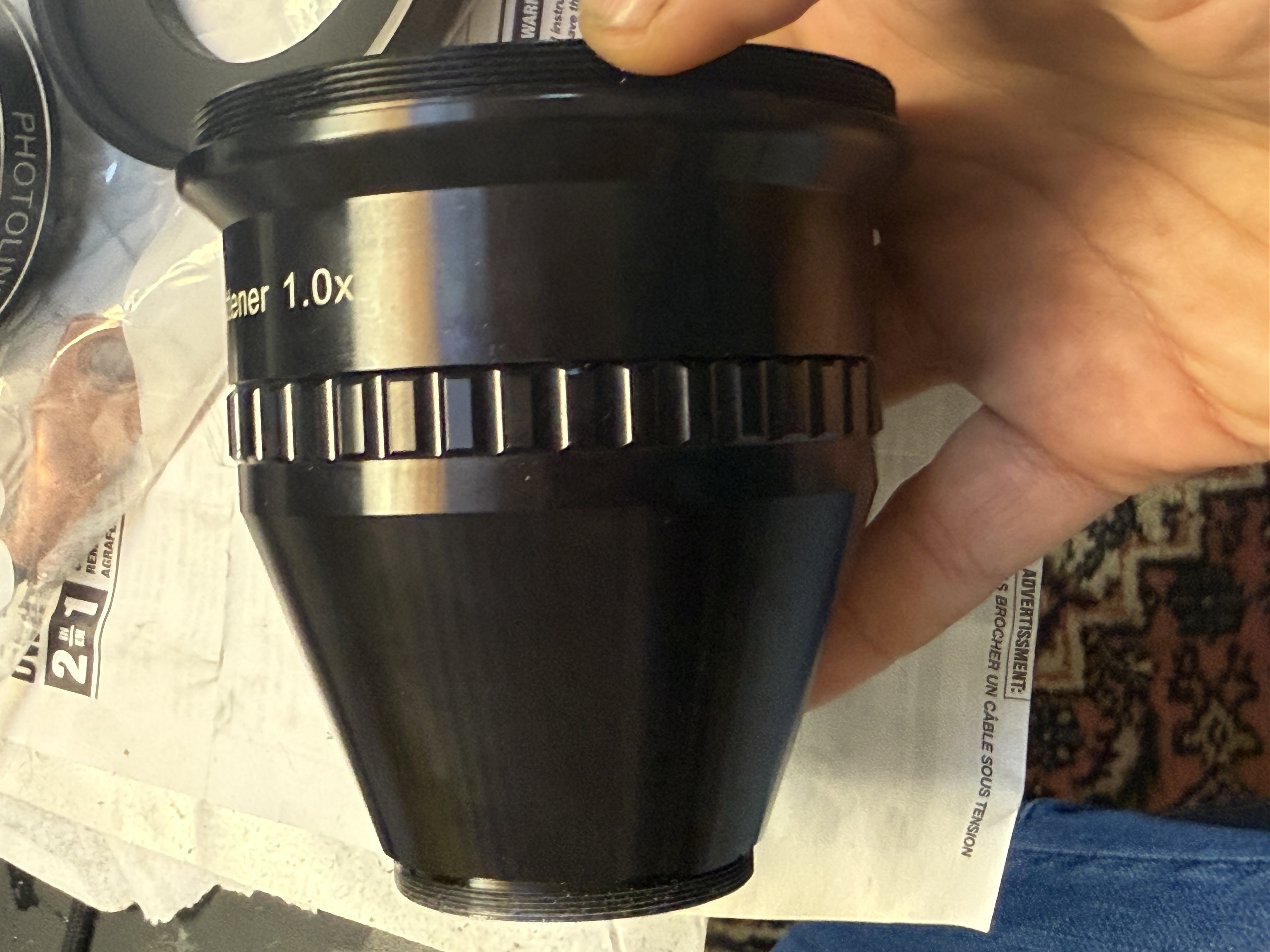

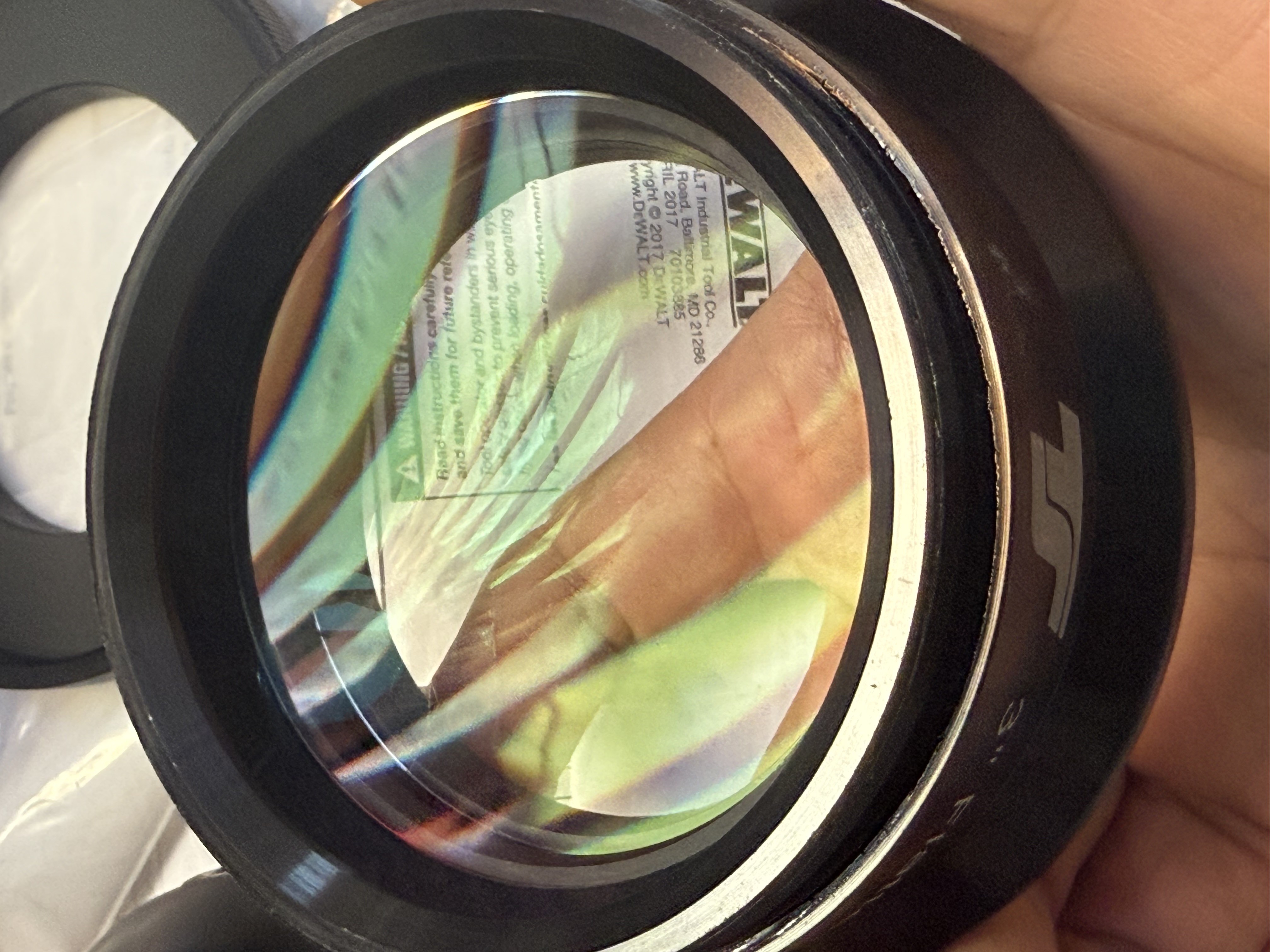

Selling an excellent condition Telescope-Optics 3" Flattener 1.0X.
CONUS only. Preffered PayPal friends and fam.
Specs :
The TSFlat3 is a 1.0X flattener, marketted by TS Optics as a "Universal APO flattener and Field Corrector, with the following highlighted characteristics:
- Connection at telescope side: M92x1 thread (male)
- Connection at camera side: M80x1 thread (male) and M48x0.75 camera thread
- Working distance from the male M80x1 thread 116 mm - enough space for filter wheels and off-axis guiders
- The M48 adapter provides a thread for 2" filters (M48x0.75 thread, female)
- Working distance from the M48x0.75 connection thread of the adapter: 55 mm
- Excellent field correction and illumination up to 60 mm diameter
- Multi-coating against reflections and halos around stars
- The focal length of the refractor is not changed (1.0X)
- Suitable for all refractors with large focusers from 2.5" - connection adapters are optionally available
- The corrector needs a backfocus of at least 150 mm from the connection thread
The TSFlat3, as mentioned in the above notes, is “suitable” for all refractors with 2.5” or larger focusers
