Used QHY294M Pro Monochrome Cooled Astronomy Camera + Accessories

For Sale: QHY294M Pro Monochrome Cooled Astronomy Camera + Accessories

QHY294M Pro monochrome cooled astronomy camera in good working condition. This camera uses the Sony IMX492 back-illuminated 4/3-inch CMOS sensor and offers both the standard 11.7 MP mode and the high-resolution 46.8 MP extended-pixel mode.

Camera Specifications:
• Sensor: Sony IMX492 monochrome BSI CMOS
• Sensor size: 19.28 × 12.95 mm, 4/3-inch format
• Standard resolution: 4164 × 2796, 11.7 MP
• Extended Pixel Mode: 8340 × 5644, approximately 46.8 MP
• Pixel size: 4.63 µm in standard mode
• Effective pixel size in extended mode: approximately 2.315 µm
• ADC: 14-bit
• Full well capacity: approximately 65,000 e-
• Read noise: approximately 1.2–1.6 e- in high-gain mode
• Exposure range: 60 µs to 3600 seconds
• Shutter: Electronic rolling shutter
• Interface: USB 3.0
• Internal buffer: 256 MB DDR3
• Cooling: Two-stage TEC, approximately 35°C below ambient
• Anti-dew window heater
• Hardware amp-glow reduction
• Camera telescope connection: M42 × 0.75 female
• Backfocus: approximately 17.5 mm
• Camera body diameter: approximately 90 mm
• Camera length: approximately 141 mm
• Weight: approximately 650 g

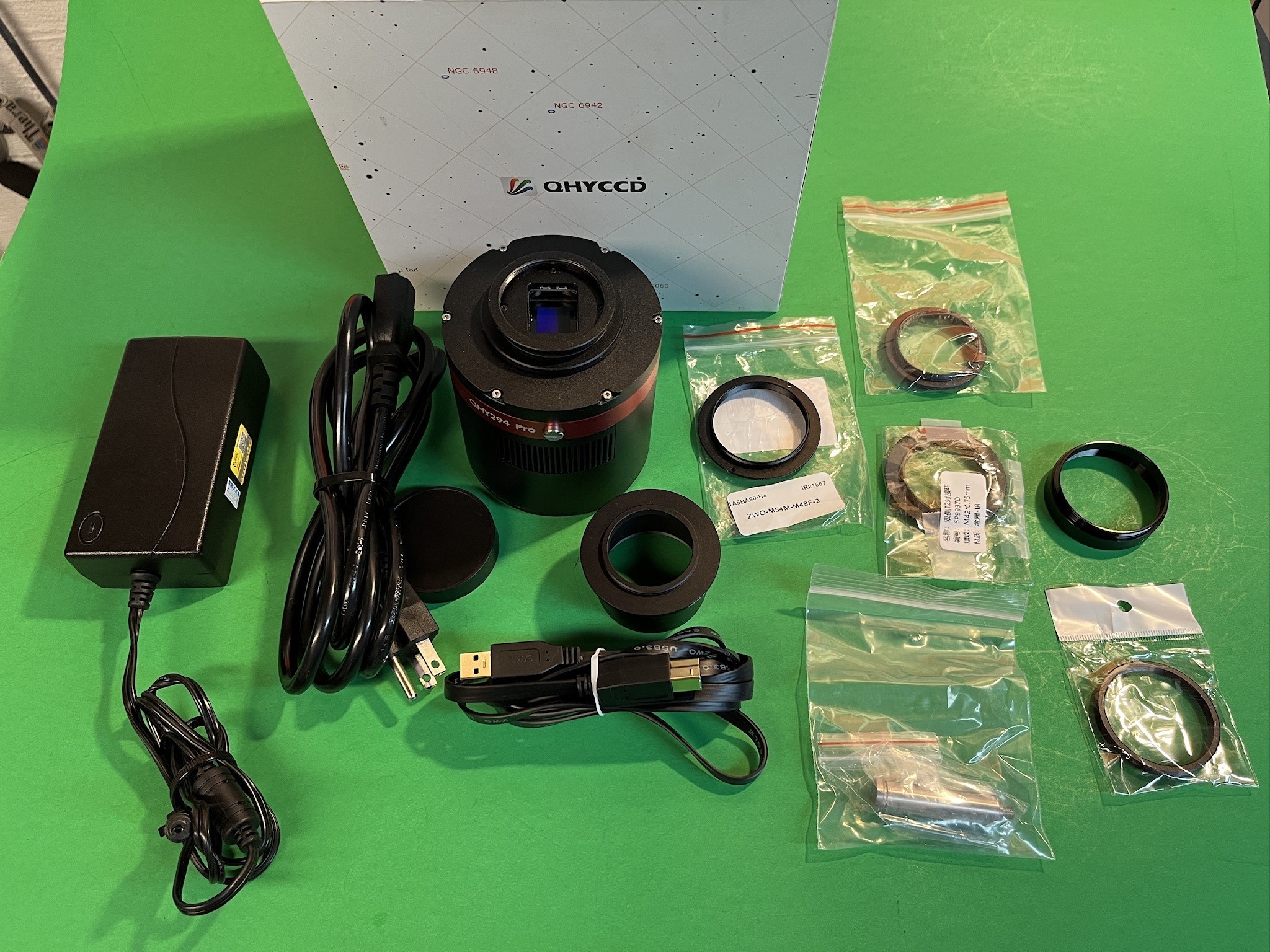

Included with the camera:

• QHY294M Pro camera with M42 female threads, with desiccant chamber
  • M42 male to M48 female / 2-inch eyepiece extension adapter
  • 12V / 6A AC power supply — not original
  • USB 3.0 cable, 2 meters
  • M54 male to M48 male adapter
  • 10 mm M48 extension
  • M42 male to M48 male adapter
  • M48 male to M42 female adapter ring
  • M42 male to M42 male adapter

The assortment of M42, M48 and M54 adapters makes this package easy to integrate into a variety of telescope, filter-wheel, OAG and imaging-train configurations. The QHY294M Pro is particularly versatile because it can operate as an 11.7 MP camera with 4.63 µm pixels or in its unlocked 46.8 MP mode for substantially finer sampling. Lights and flats calibration require matching dark fames.

Camera and included accessories are sold as pictured/listed. Original box has slight water/dew mark in one corner. Free shipping to contiguous USA.

Questions welcome. 30-day return period if you are not satisfied.
