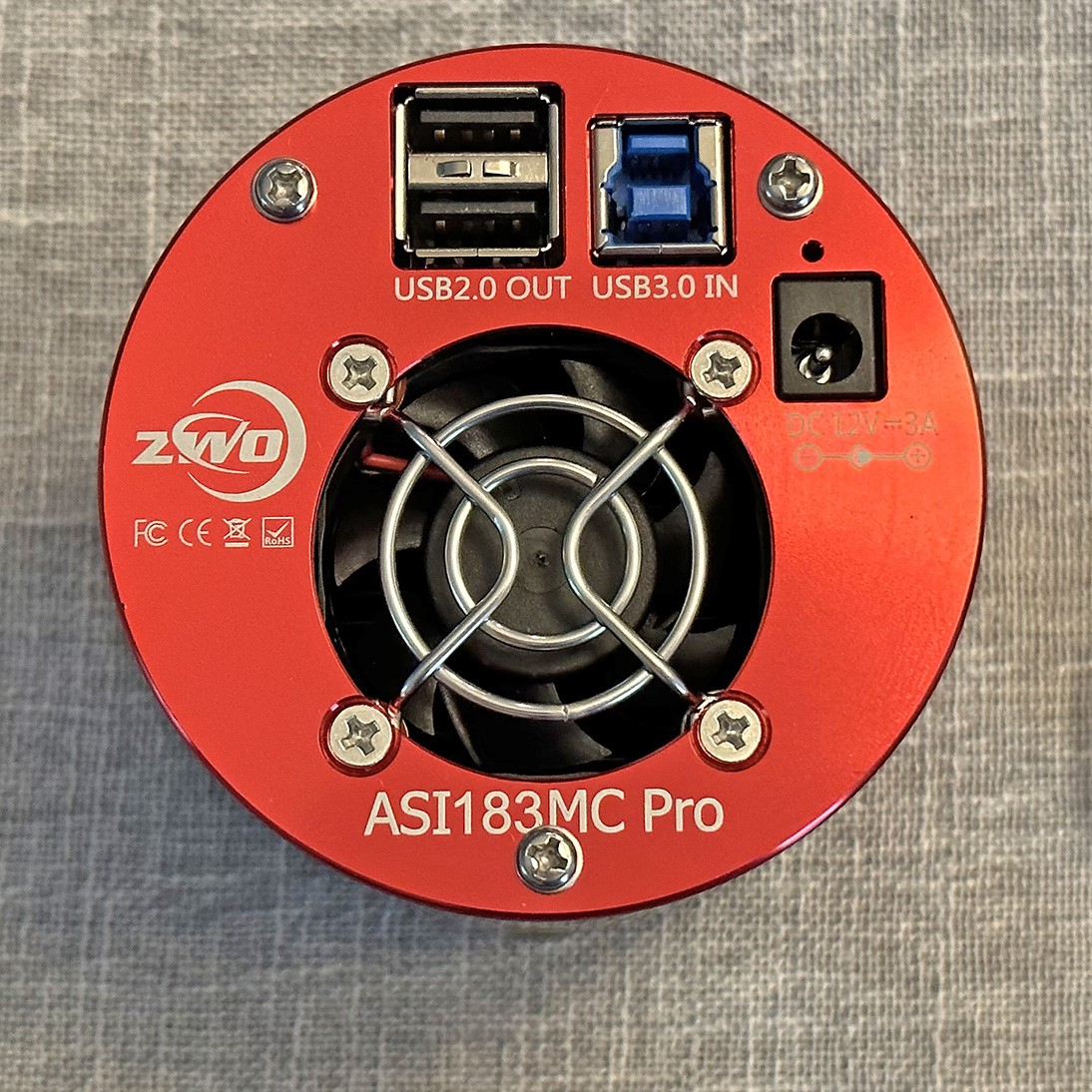

ZWO ASI 183MC Pro camera

Please Log In to view the details for this classified ad.

Don't have an Astromart account? Click here to create one

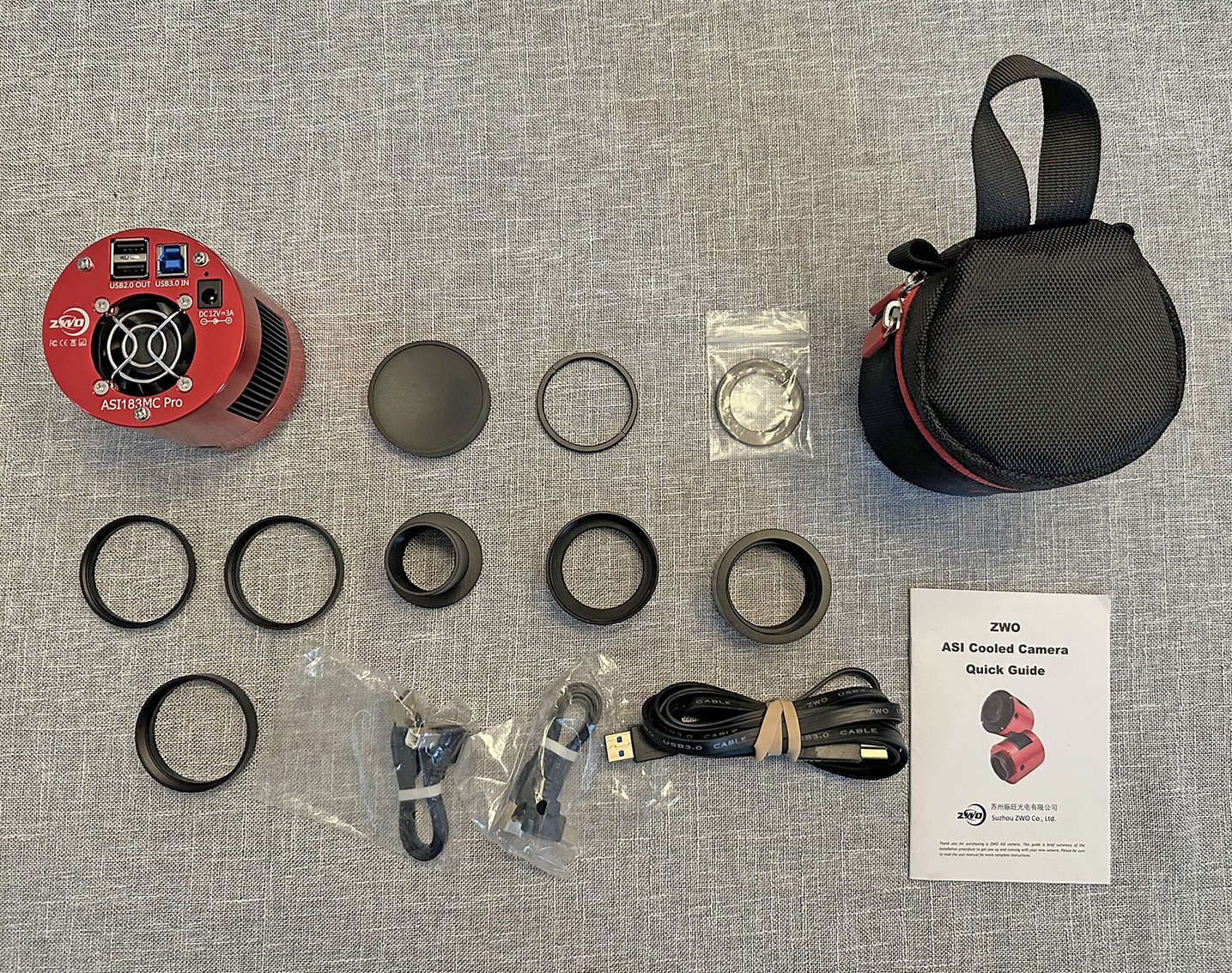

Lightly used, comes with all original accessories except one spacer (lost). I will pay shipping within CONUS.

Only used a few times. Selling to upgrade to a monochrome camera. Note: This cooled camera requires a power supply to operate, not included. I powered it from a Pegasus PowerBox  and an ASI Air (5.5/2.1mm tip), or you can purchase a power supply from ZWO.

Specs from ZWO website:

Sensor: 1″ CMOS IMX183CLK-J/CQJ-J
Diagonal: 15.9mm
Resolution: 20Mega Pixels 5496*3672
Pixel Size: 2.4μm
Bayer Pattern: RGGB
Shutter:Rolling shutter
Exposure Range: 32µs-2000s
ROI: Supported
Read Noise: 1.5-3.0e
QE peak: 84%
Full well: 15ke
ADC:12bit
DDRIII Buffer: 256MB
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
Interface: USB3.0/USB2.0
Adaptor: M42X0.75
Protect window: D32-2-AR
Dimensions: 78mm Diameter
Weight: 410g
Back Focus Distance: 6.5mm
Cooling: Regulated Two Stage TEC
Delta T: 40°C-45°C below ambient
Camera Power consumption: 650mA at 5V
Cooler Power consumption: 12V at 3A Max
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%
Max FPS at full resolution:
10Bit ADC
5496×3672 19fps
3840×2160 41.04fps
1920×1080 80.10fps
1280×720 117.30fps
640×480 169.92fps
320×240 308.17fps
12bit ADC
5496×3672 19fps
3840×2160 36.12fps
1920×1080 70.48fps
1280×720 103.23fps
640×480 149.53fps
320×240 271.19fps
more resolutions are in software, support customize resolution.
