8" f/6 Primary Mirror + 40mm Secondary & Spider Assembly — ATM Parts, Sold Separately or Together — Free CONUS Shipping
Please Log In to view the details for this classified ad.
Don't have an Astromart account? Click here to create one
Two Newtonian optics from different sources, listed together because the sizes work for the same build. Buy either one alone or take both.
1) 8" f/6 Primary Mirror — $135

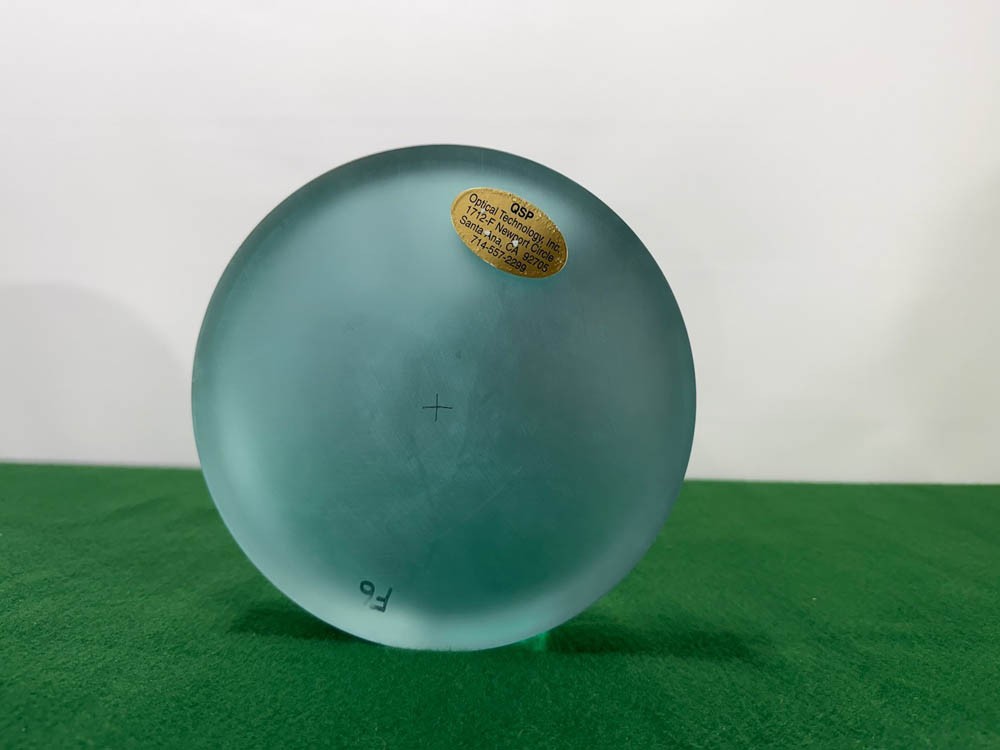

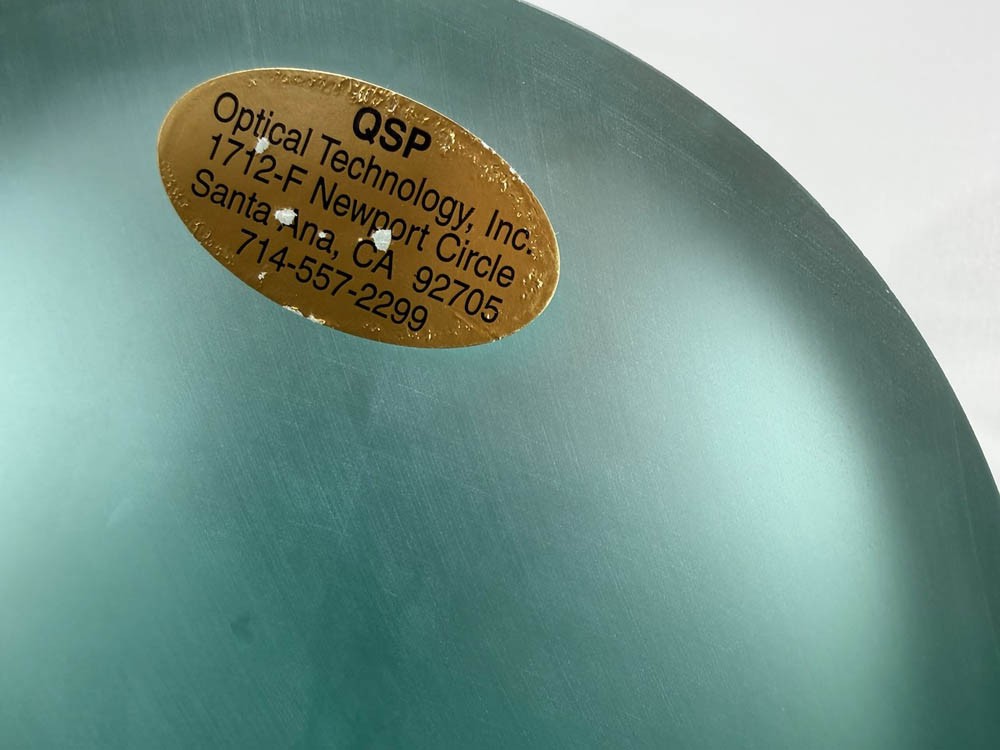

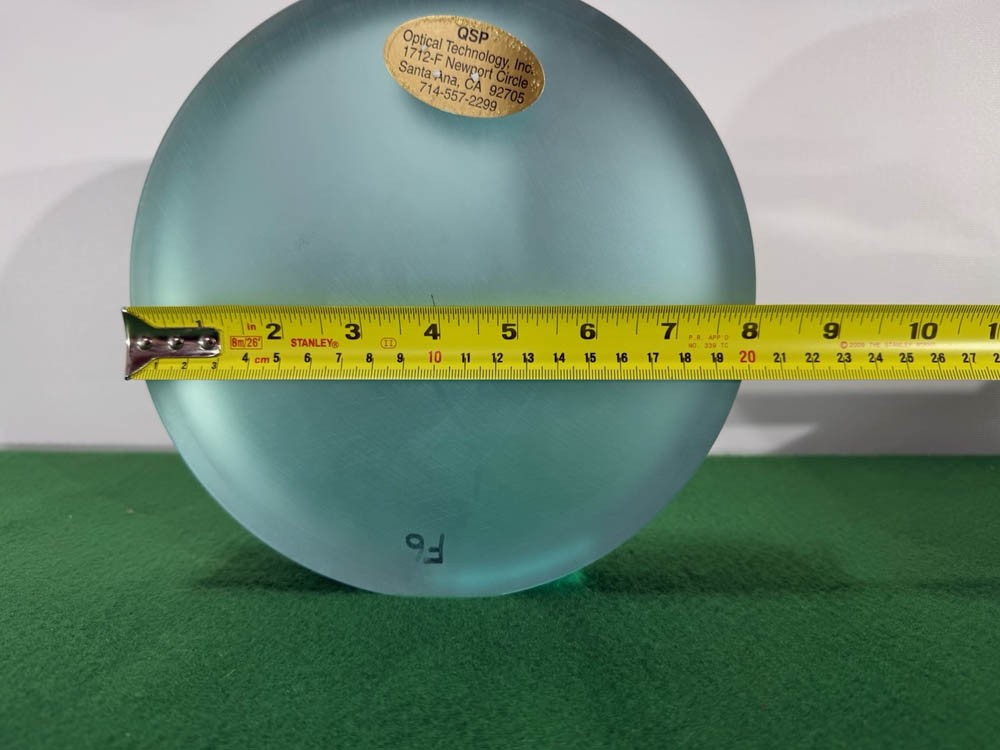

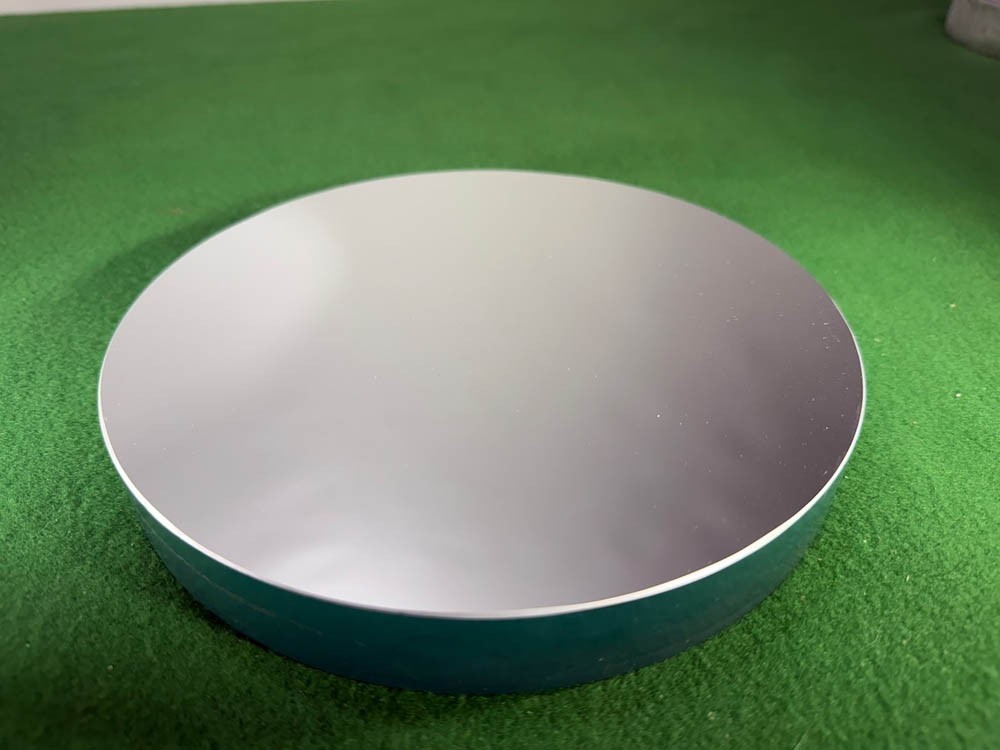

Marked "F6" on the back with a QSP Optical Technology, Inc. (Santa Ana, CA) label. Approximately 8" diameter, approximately 1.25" thick. Professionally coated and center-marked.

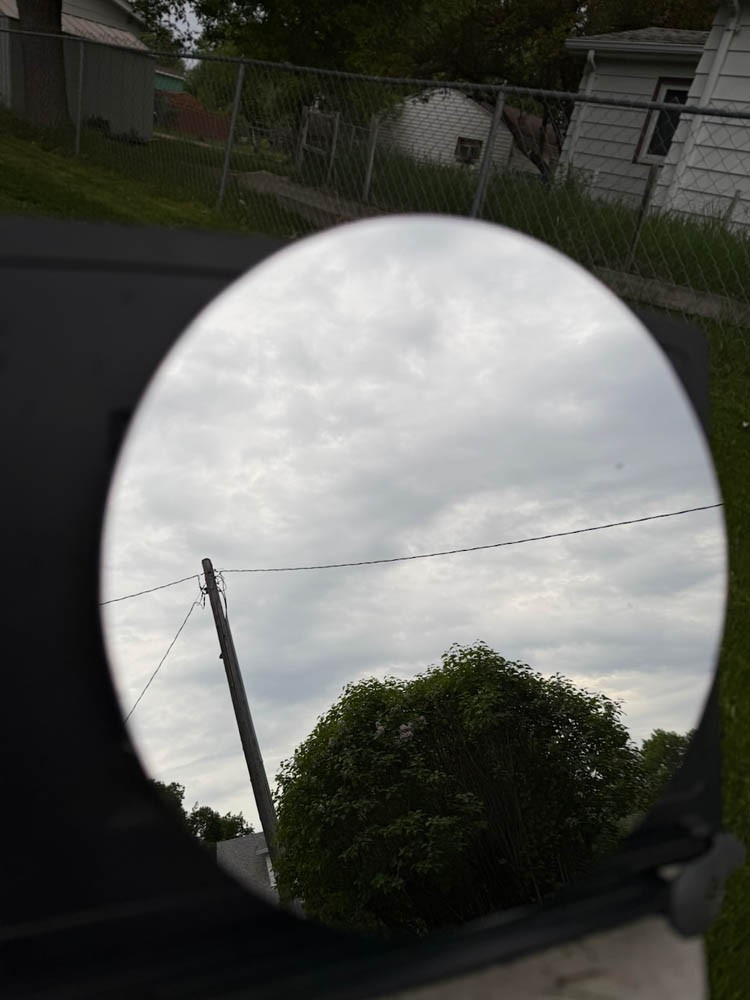

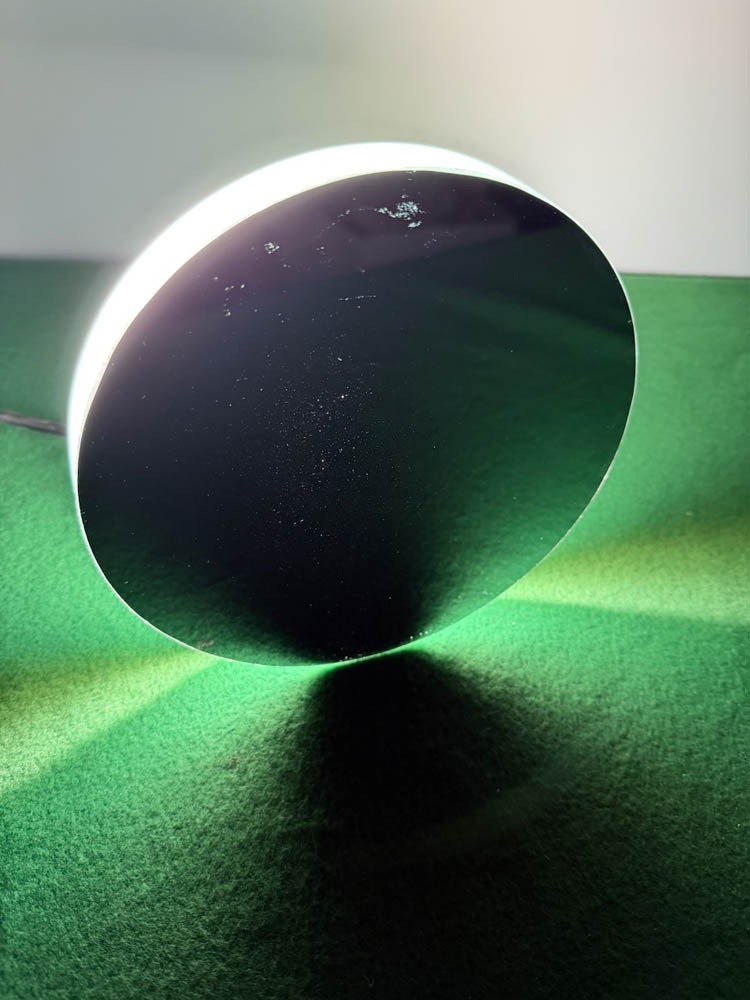

I have no documentation on figure, wavefront, or the original telescope, so it sells as an unidentified 8" f/6 primary. The coating is reflective and gives a bright image — reflection shots of distant objects are in the photos. There is scattered pinholing visible under a bright backlight and a small area of edge coating loss. No chips, cracks, or significant scratches. Surface is clean. Sold as-is.
Good candidate for an ATM project, a restoration, or a recoat.
2) Secondary Mirror, Holder & Spider — $55

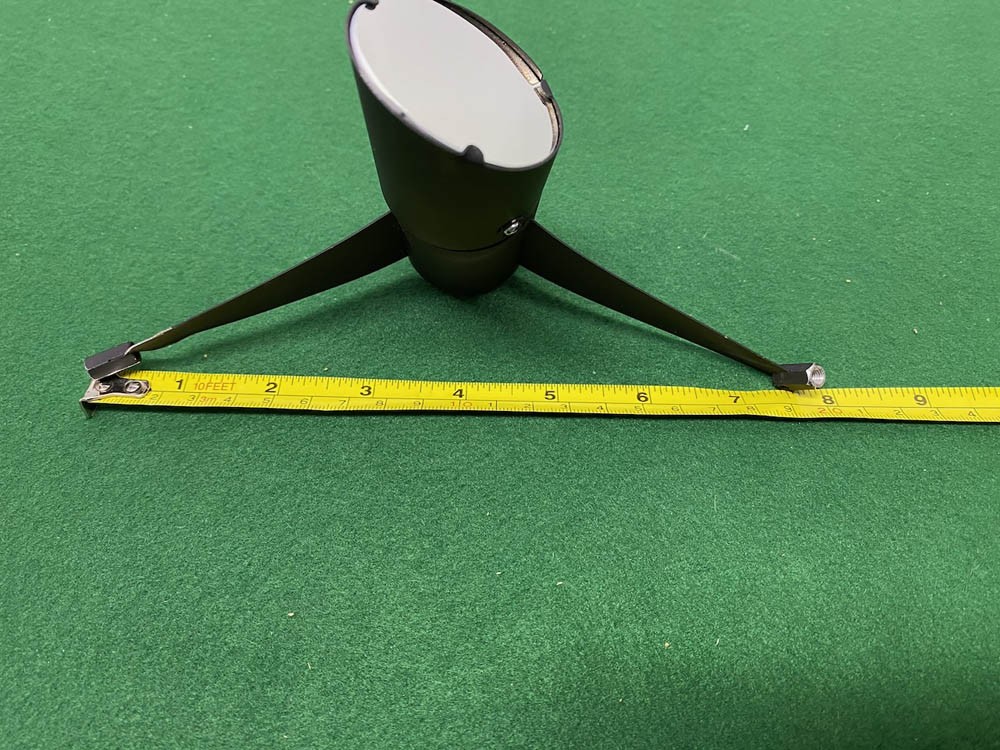

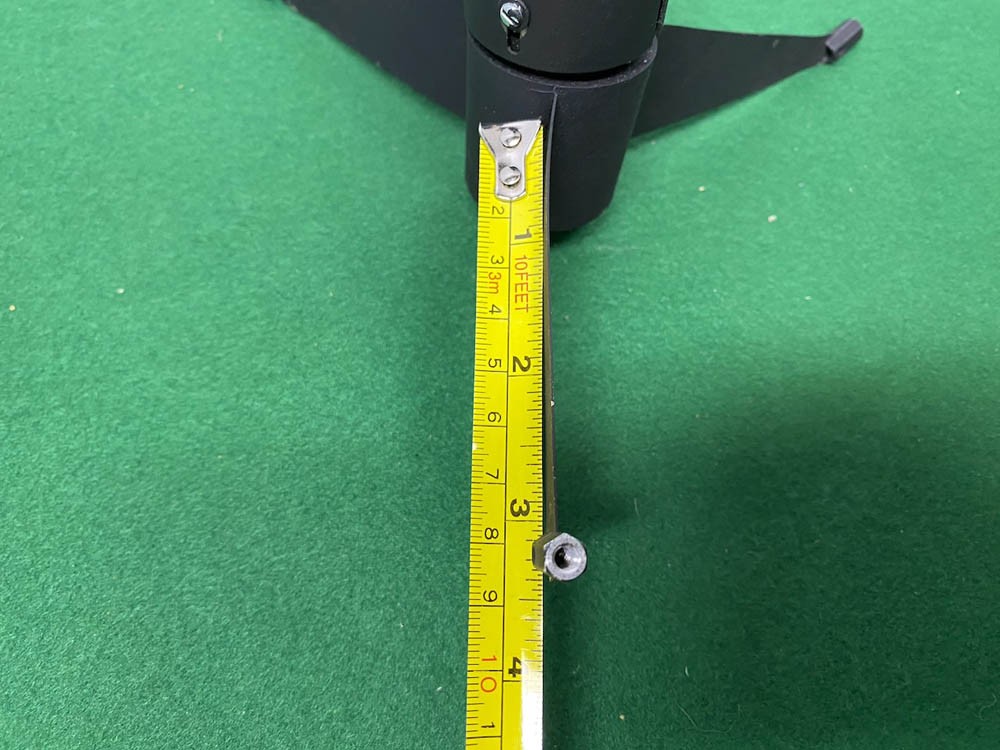

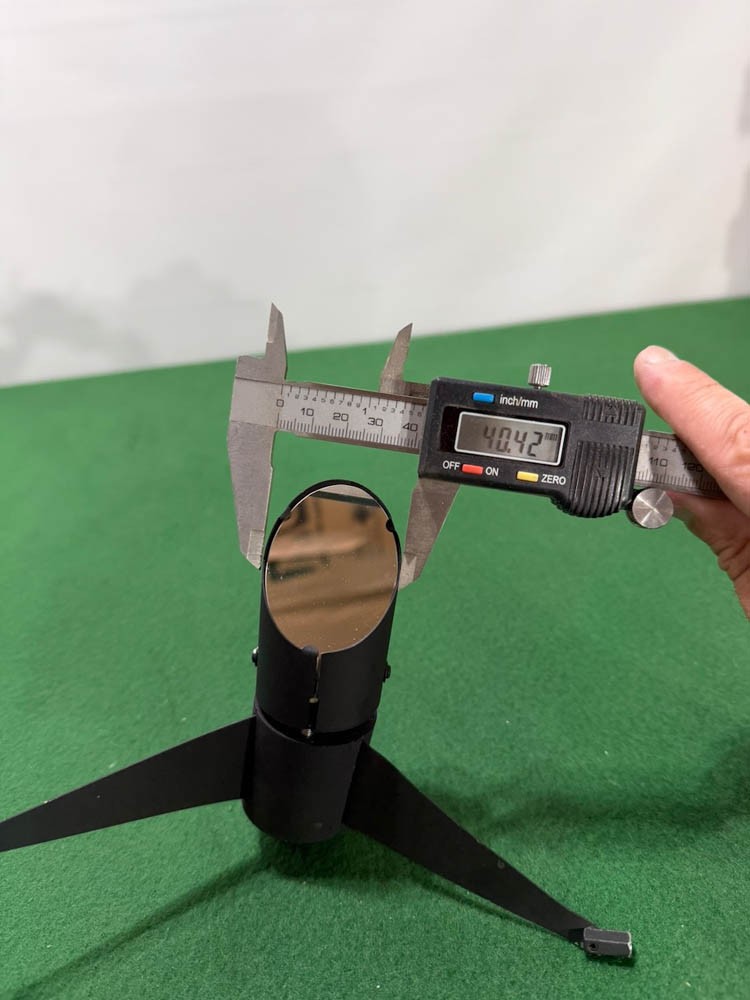

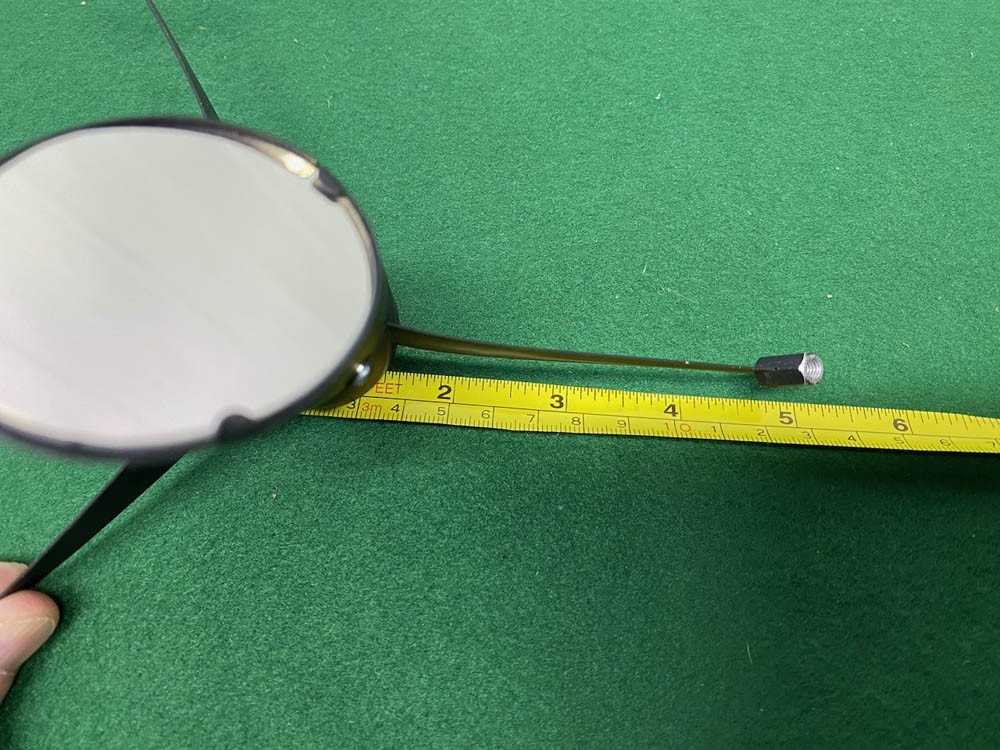

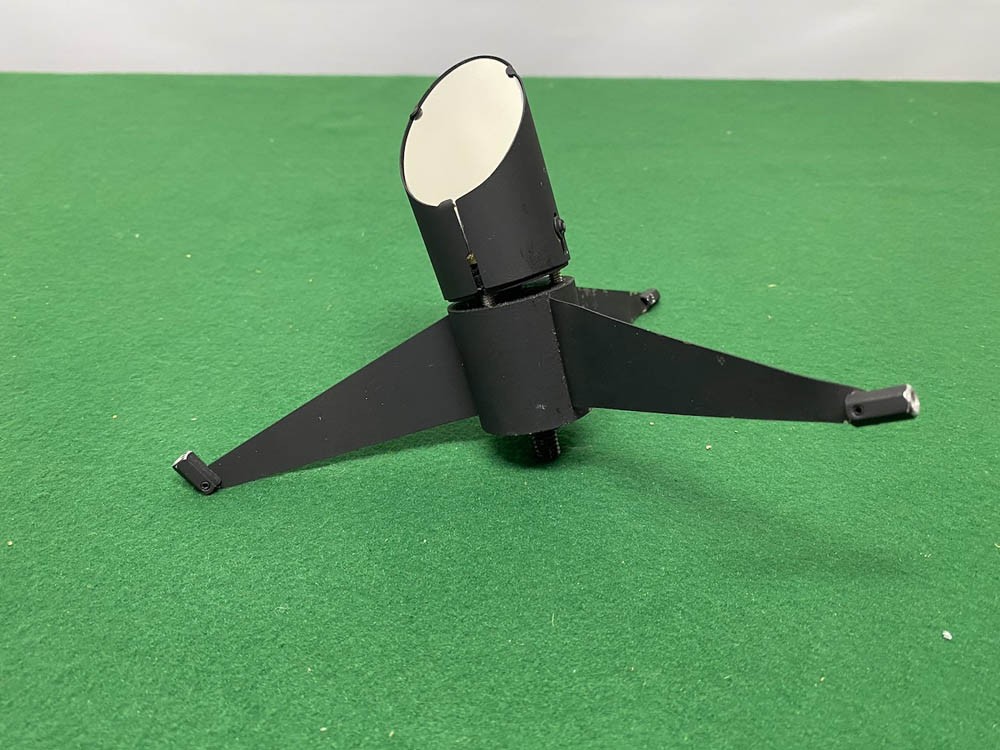

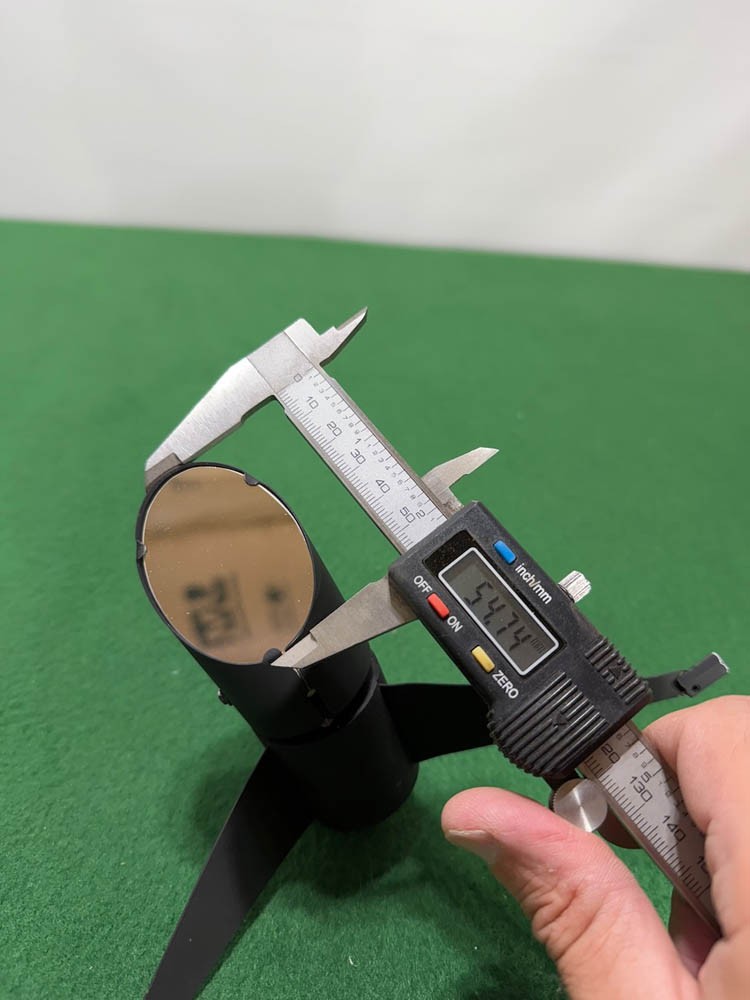

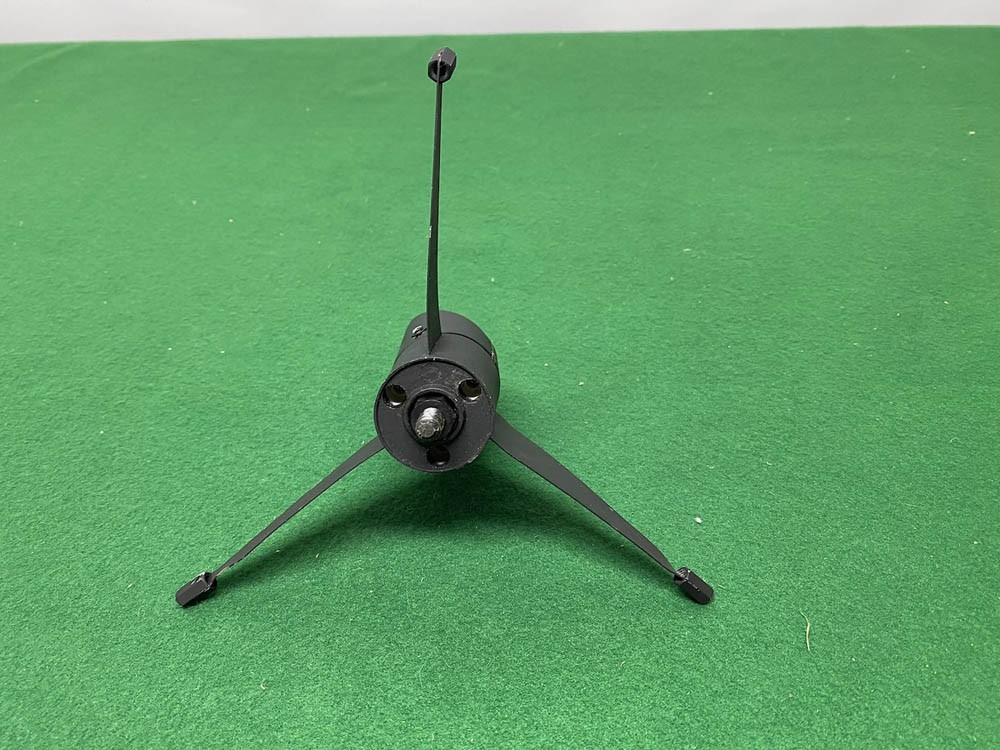

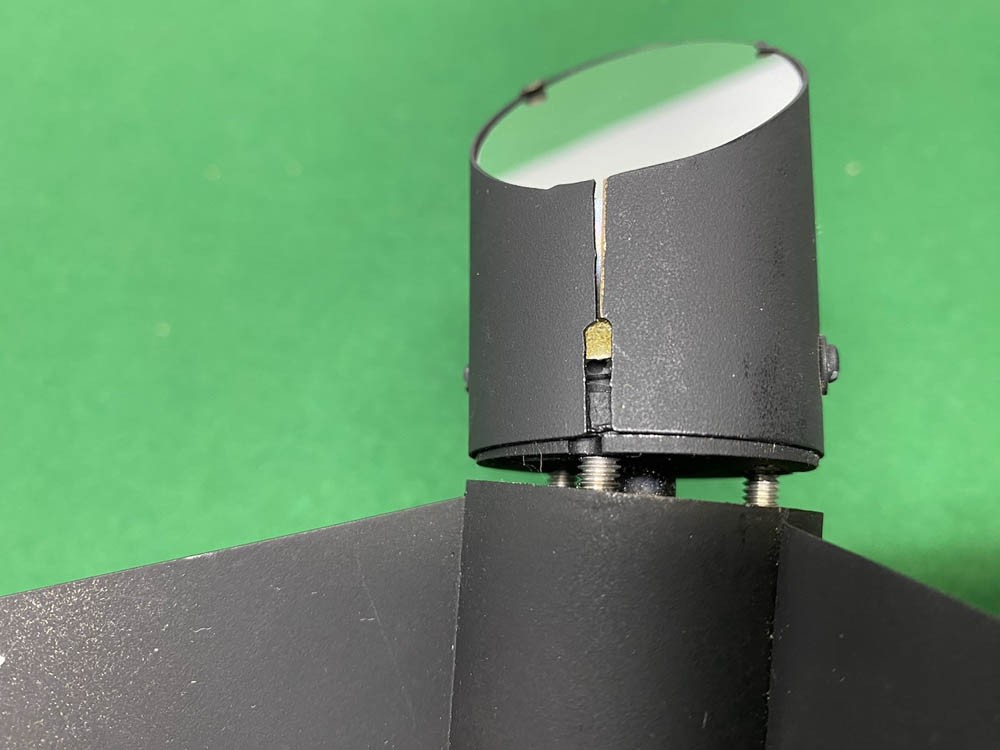

Maker unknown. Elliptical secondary measures 40.42mm minor axis by 54.74mm major (about 1.59" x 2.16") by caliper — caliper photos included. Mounted in a black round holder with a center-bolt tilt/collimation adjustment. Three-vane spider, 8-1/4" tip to tip, sized for roughly an 8"–8.5" ID tube. Vane ends are threaded for tube bolts.
Coating is bright and even with no pinholes or edge lift that I can see. Light dust only. Paint on the holder and vanes is sound with minor handling marks.
3) Both — $170
They didn't come from the same scope, but the numbers happen to line up well. A 40mm minor axis on a 203mm f/6 works out to a 19.9% central obstruction by diameter — under 4% by area — and still gives roughly a 14mm fully illuminated field at a typical focuser height. That is a visual-optimized pairing, and the 8-1/4" spider drops straight into the same tube. Between the two you have most of the optics for an 8" f/6 Newtonian.
Not included: primary cell, tube, focuser, or hardware beyond what's shown.
All prices include shipping, insurance, and PayPal fees within CONUS. International at buyer's expense. PayPal preferred; other methods considered.
Questions or more photos, just ask. Thanks for looking.
