As New William Optics M-CAA92 Rotator
Please Log In to view the details for this classified ad.
Don't have an Astromart account? Click here to create one

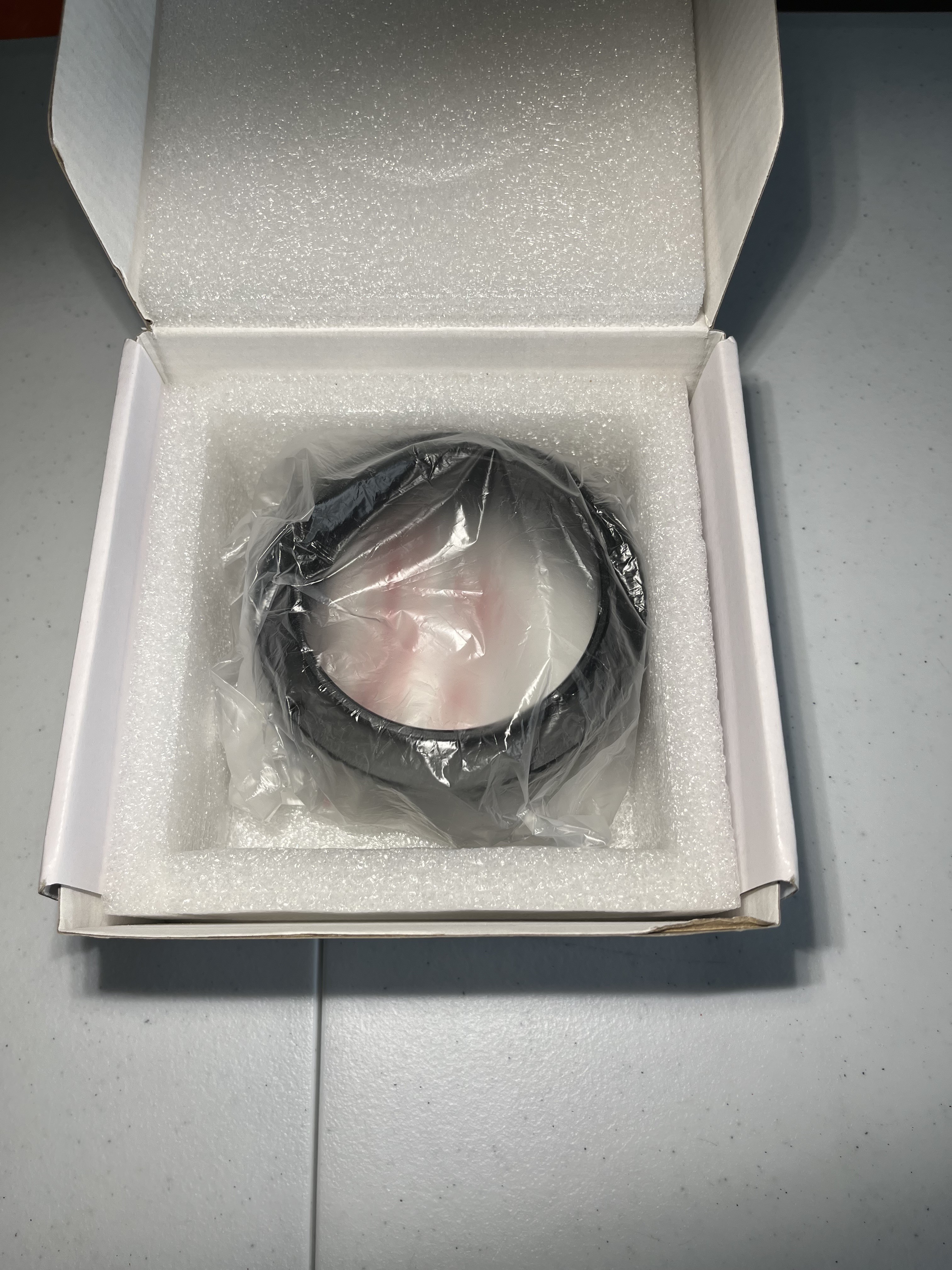

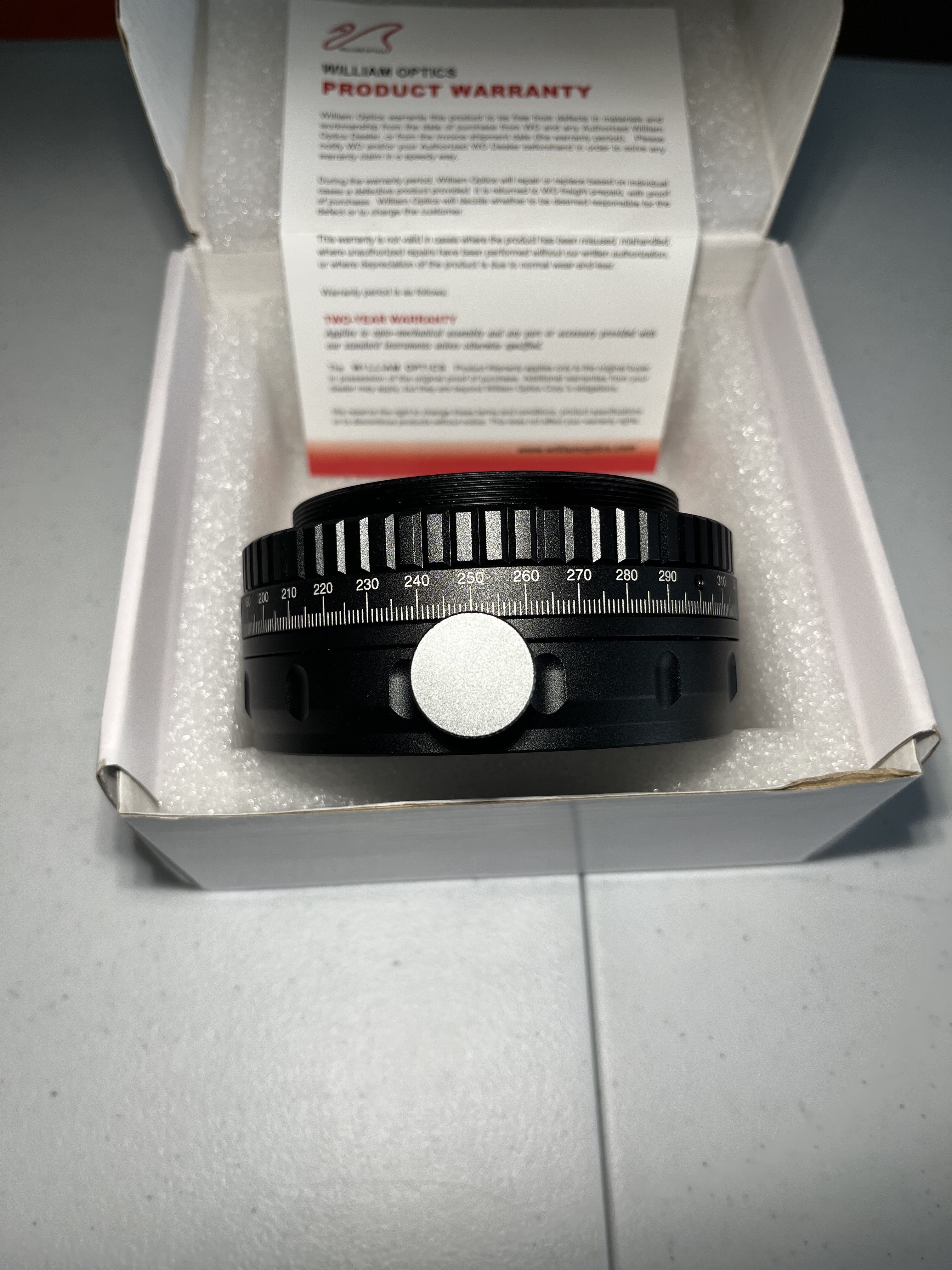

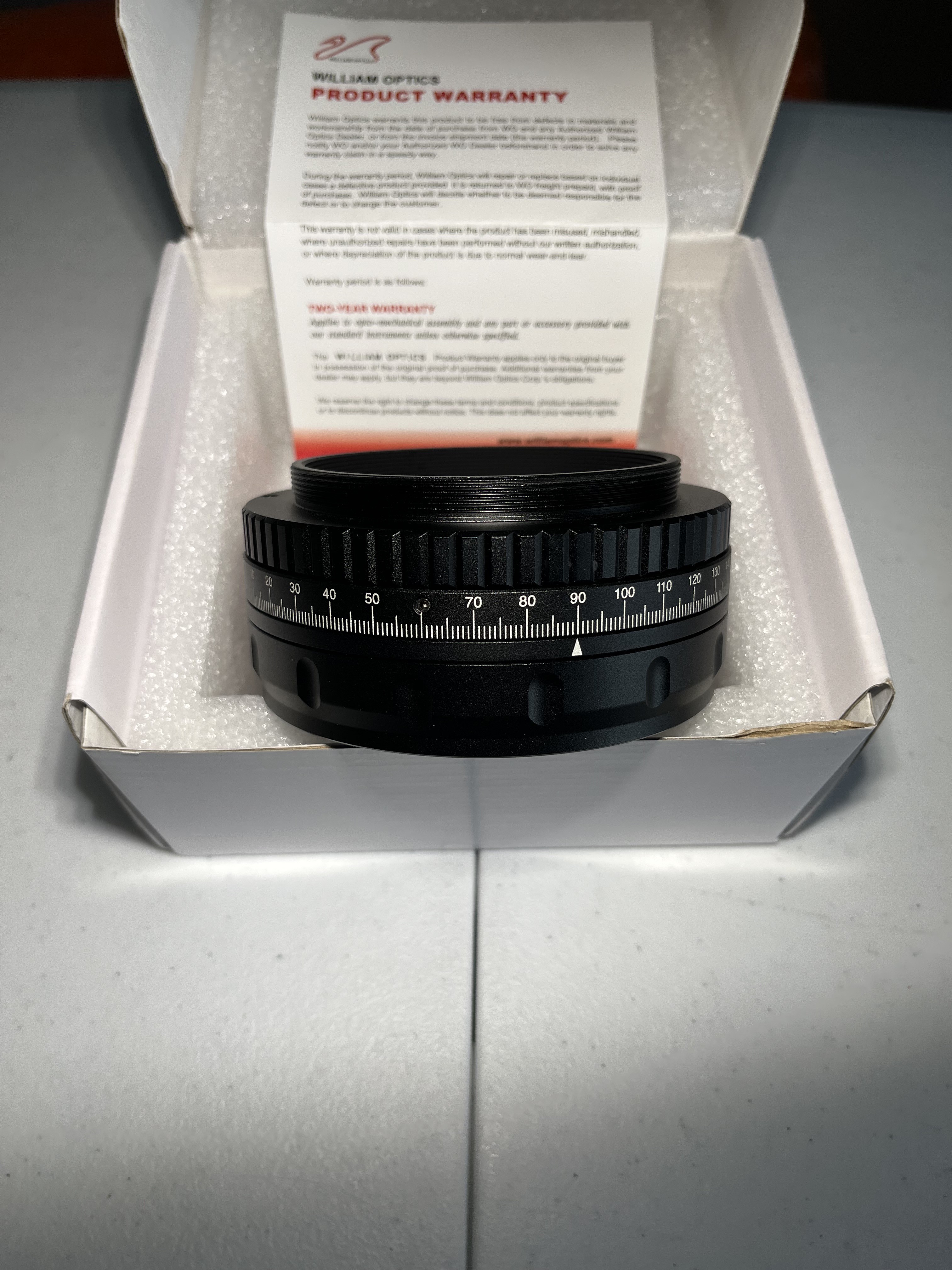

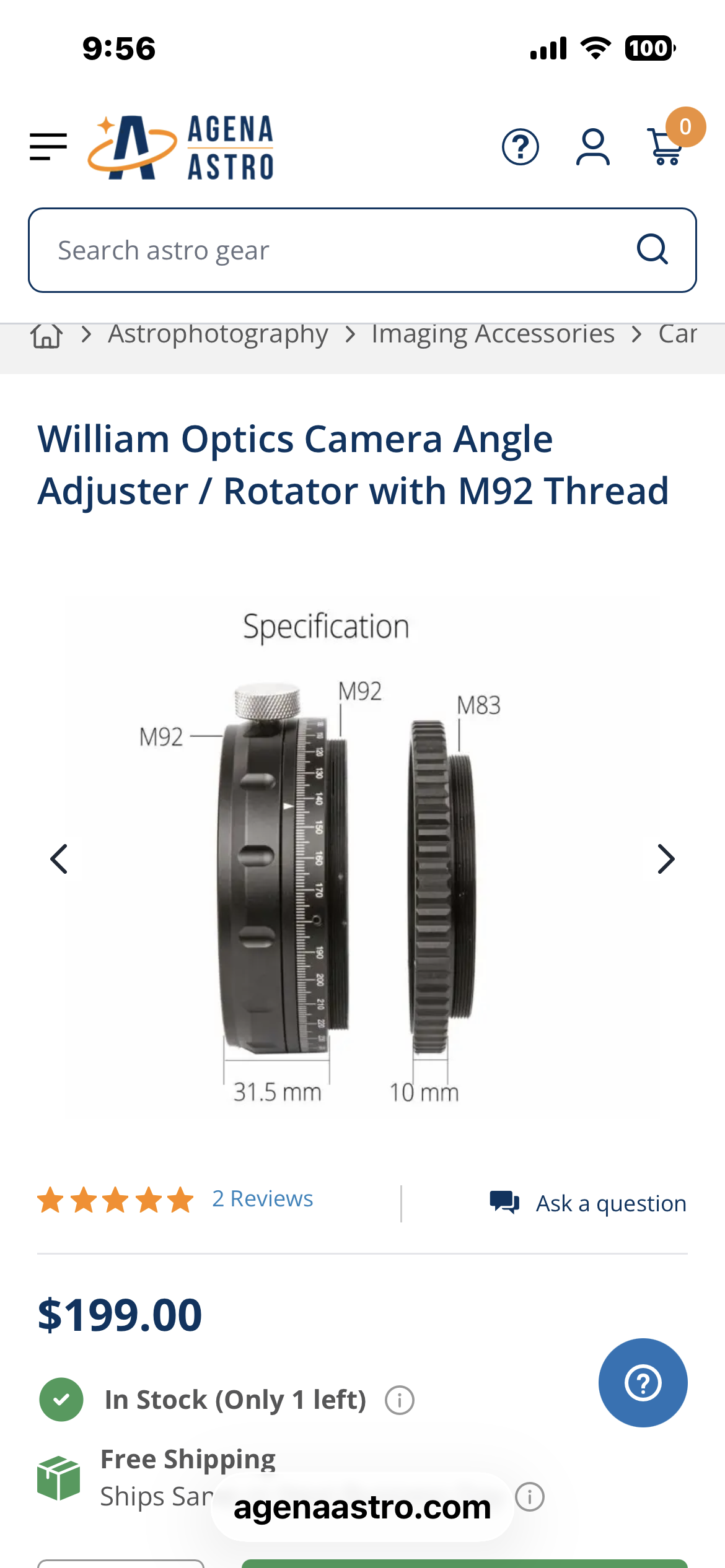

I have for sale an as new William Optics 92mm Rotator. I had planned to use it on a scope I no longer have. Cleaning out some items I no longer have a use for. From the Agena Astro website from which it was purchased:
Thanks for looking,
Dan
William Optics' newly designed 3" camera angle rotator. Fits: WO and other brands focusers with M92 and M83 threads (see details below). It allows you to rotate your camera over 360º in either direction, making it easier to frame your shot just the way you want it. Maximum load carrying capacity is approx. 6kgs (13lbs).
This adapter consists of two parts:
1. An M92 rotator with male/female M92 threads
2. An M92 to M83 step-down adapter
Specifications:

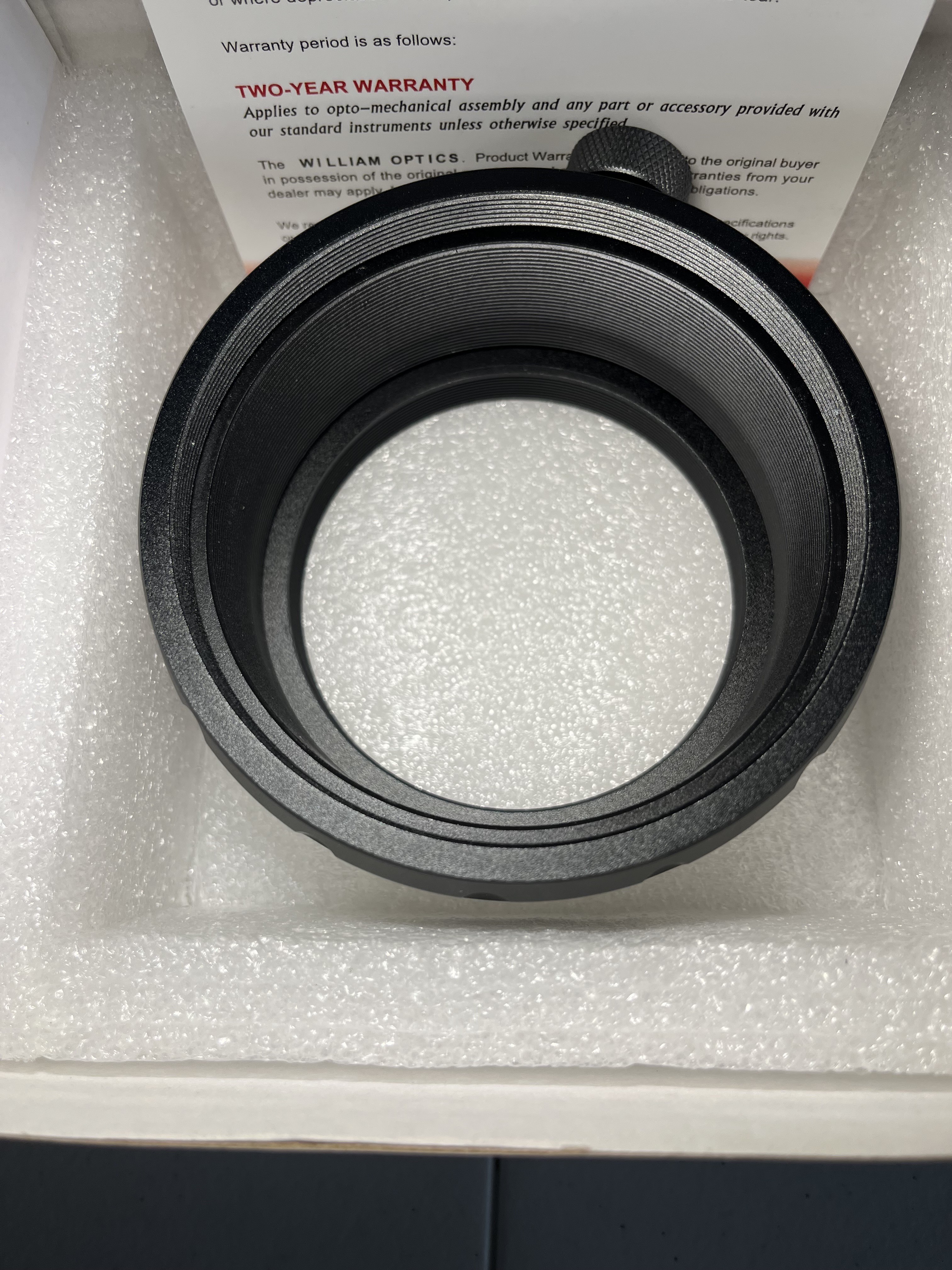

- M92 Rotator component only
- Male thread specification: M92x1
- Male thread length (including unthreaded undercut): 6mm
- Female thread specification: M92x1
- Female thread length: 8.5mm
- Weight: 7.4oz
- Optical length: 31.5mm
- Total length: 37.5mm
- Clear aperture: 85.8mm

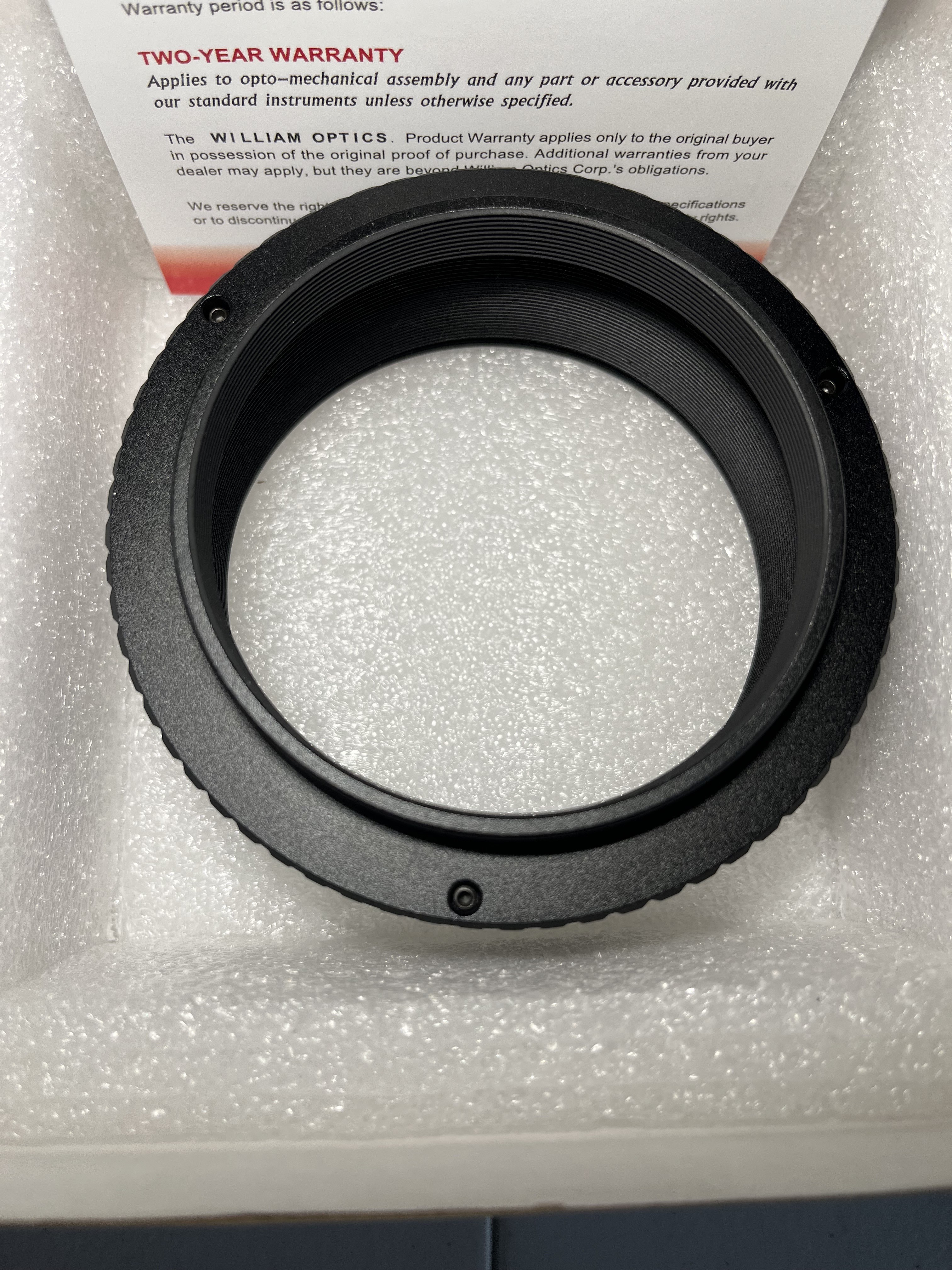

- M92-M83 step down adapter only
- Male thread specification: M83x1
- Male thread length (including unthreaded undercut): 8.1mm
- Female thread specification: M92x1
- Female thread length: 8mm
- Weight: 2.5oz
- Optical length: 10mm
- Total length: 18.1mm
- Clear aperture: 77mm
Thanks for looking,
Dan
