alt az mount for E3 tripod?

Started by timcat, 04/13/2006 09:03PM
Post Reply
Posted 04/13/2006 09:03PM Opening Post
Tim LeVane
View public profile Send a private message to Tim LeVane Find more posts by Tim LeVane Find threads started by Tim LeVane
Forum Member

Join Date: Mar 2005

Location: Loveland CO, US

Posts: 35

I have an extra E3 metal tripod sans mount and was wondering what the best option might be for an alt az style mount for it.I want to keep the cost down and it would be for 3 or 4 inch refractor scopes only.
Quote
What I know, the public does not approve, and what is approved, I know to be error.
N.C.
Posted 04/13/2006 11:17PM #1
Jon Isaacs
View public profile Send a private message to Jon Isaacs Find more posts by Jon Isaacs Find threads started by Jon Isaacs
Forum Member
jonisaacs's avatar

Join Date: Jun 2001

Location: San Diego CA, US

Posts: 2161

Tim:

My favorite mount for short focal length 3 and 4 inch refractors is a small EQ mount with the Polar Axis pointing at the zenith. It makes a nice balanced "side-saddle mount" so it can be used like a DOB, point it and track by hand. One can also use the Slo mo controls to track smoothly at high magnifications...

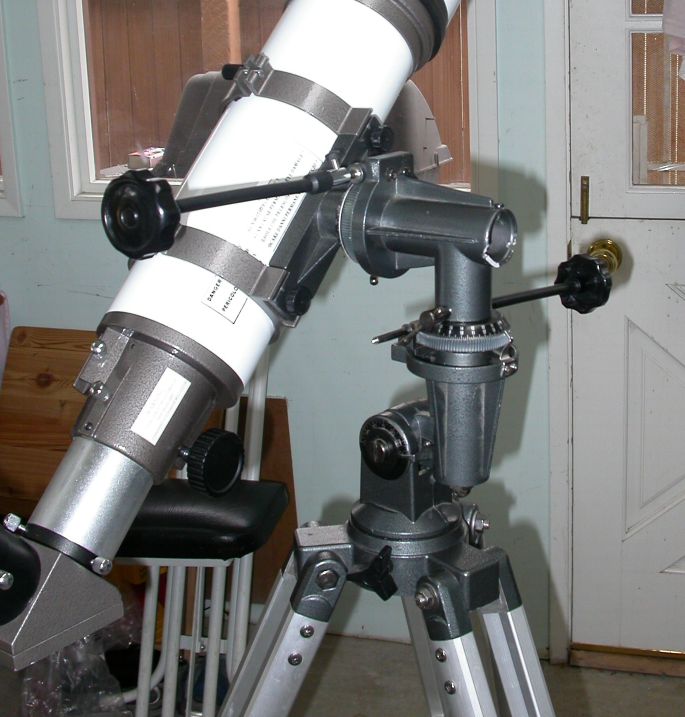

The attached photo is of a 100mmF6 Achromat mounted on an Old Meade 4500 mount. It is good to 250x, currently I am using it with an ED-80.

jon

Attached Image:

jonisaacs's attachment for post 102751
