Is there a way to reduce the apeture of a commercial refractor (such that of the new cheap Meade LXD 55 telescope) to reduce false color? I have heard that it was an old way ATMers could make semi-apo scopes back in the day. Then I guess a minus violet filter could be used to reduce the remaining color. Is it possible, because a solid 3.5 inch sharp unobstructed refactor with go-to would be grand.
Reduce Effective Apeture
Started by Dasuhu, 11/07/2002 05:45AM
Posted 11/07/2002 05:45AM
Opening Post
Posted 11/07/2002 06:32AM
#1

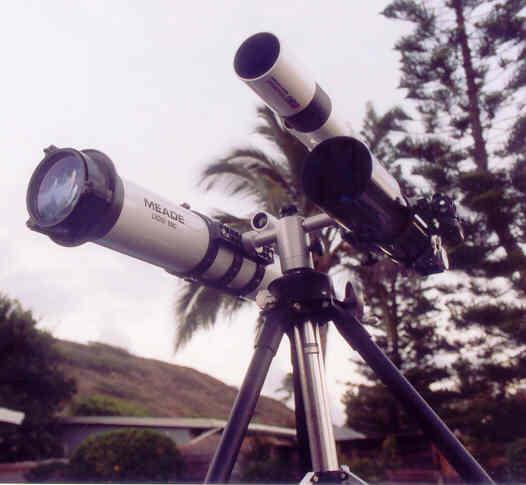

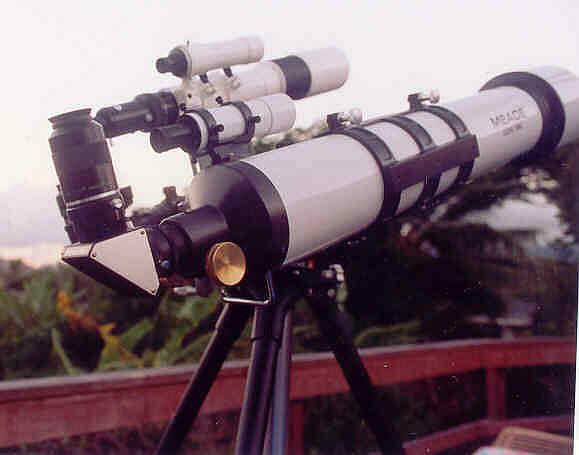

Sure that works. Get a 6" f/8 refrector cut a 4" hole in the lens cap and you have a 4" f/12 refractor. You will probably have less color and since you are using the center of the objective, sharper images. BUT, you are still mounting and dealing with the weight and size of a 6" refractor. Thereby requiring a large and more expensive mount. The money saved for a cheap 6" is used for the heavier duty mount. You can get some very nice 4" refractors at a reasonable price and get good color correction, fine images and light weight. The light weight lets you mount your scope on a less expensive mount. The size difference between a 6" f/8 and a 4" f/6 is huge. I'm attaching a photo of my 6" Meade and 4" Borg on a Giro mount to give you some idea of the difference. Yes the Meade gains some size by being closer to the camera, but you can see that the diameter and tube lenghts are massively different with only a 2" diameter difference in objective. Think about it. Clear skies,
Tom
Tom
Attached Image:
