Vixen Alt-Az info?

Started by Tom Dove, 03/07/2005 09:50AM
Posted 03/07/2005 09:50AM Opening Post
I bought a used, older-model Vixen Alt-Az mount here a while ago and am using it with a 100mm achromat. It works, but needs more tweaking (I've done a bit of that already) to make it smoother and have less slop, especially in altitude. I think there's something wrong with the sequence of washers as they are installed but I've not been able to work out the correct sequence. It takes too much tightening to hold the scope stable, making smooth tracking difficult. Perhaps some parts are missing.

Can somebody provide an exploded diagram of this mount or some expert help for me? It does not have the counterbalance arm, and appears to be much like the Orion Alt-Az mount, with worm-geared fine adjustments on both axes.

-- Tom

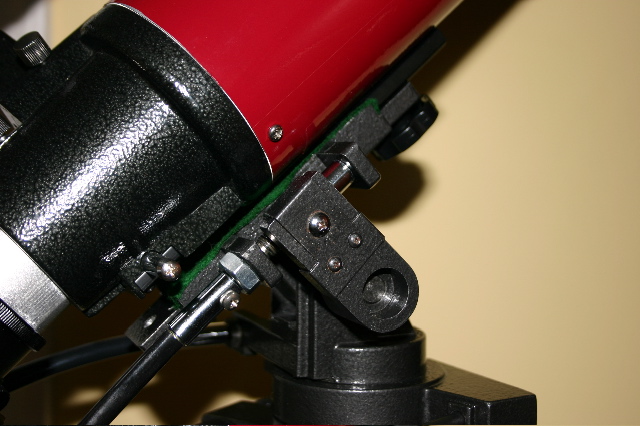

Attached Image:

Tom Dove's attachment for post 22725
