Optical Design Software

Started by tomrod, 07/21/2002 12:36PM
Posted 07/21/2002 12:36PM Opening Post

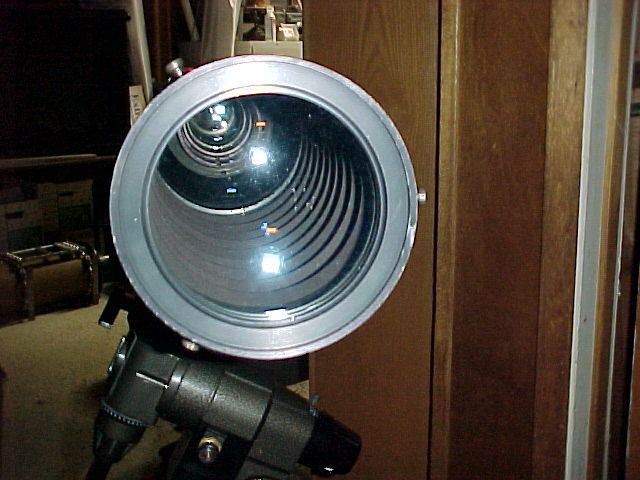

I have a 5" four element refractor with a bad objective (asitgmatism). I have measured the curvature and density of the glass for each element. I would like to find a good shareware/freeware program that would let me back out the design. I could then (I hope) see if I could find a commercially available 5" objective that could be spaced correctly for this scope. Any help or suggestions would be appreciated.

Attached Image:

tomrod's attachment for post 991
