12" Lightbridge collimation bolts?

Started by alanzaza, 02/19/2006 10:35PM
Post Reply
Posted 02/19/2006 10:35PM Opening Post
Alan Zaza
View public profile Send a private message to Alan Zaza Find more posts by Alan Zaza Find threads started by Alan Zaza
Forum Member

Join Date: Feb 2004

Location: Campbell CA, US

Posts: 20

Does anyone know the size, and thread number of the primary cell collimation bolts? I'd like to replace them with knob style bolts. I'm thinking they are metric.
Thanks
Alan
Quote
Posted 02/20/2006 02:39AM | Edited 02/20/2006 02:38PM #1
Judson Mitchell
View public profile Send a private message to Judson Mitchell Find more posts by Judson Mitchell Find threads started by Judson Mitchell
Forum Member
Jud's avatar

Join Date: Jan 2005

Location: Simpsonville SC, US

Posts: 381

Alan, I have been reasonably successful finding bolts, etc, at Ace Hardware, or other locations with extensive assortments of small parts. However, I could not find suitable collimation bolts for my 12" GSO (HOC) dob. As a result I placed knurled knobs on the bolt ends using epoxy. The attachment was reinforced by boring out the back side of the knob, then slotting the knob so that a thin SS strip could be inserted to fit into the bolt screw driver slot. I can send a few more pictures outlining the construction if you are handy enough to make the fix. Hopefully the picture will be attached showing the finished product. Now instead of using a screw driver to adjust my collimation, it can be done with finger adjustments.

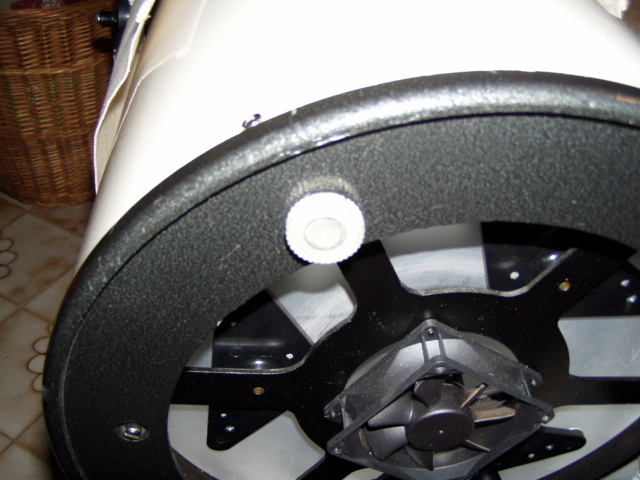

Attached Image:

Jud's attachment for post 101045
